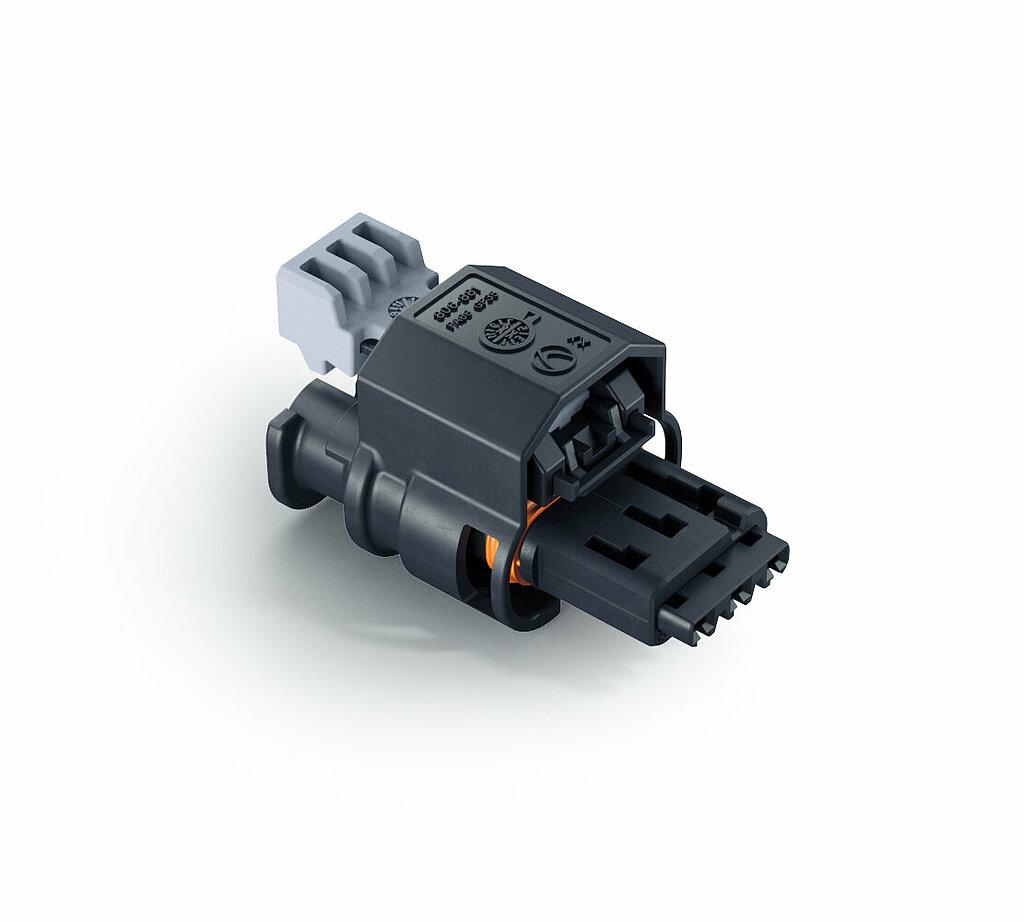

1.2 SealStar HMK
In addition to SealStar requirements, our impressive range of patented high-performance engine contact systems offer maximum vibration resistance, tightness, operation in the most extreme temperatures, an AK receptacle, a high level of contact normal force, automated customization, and much more.
Global Product Manager Low Voltage Connectors
| GENERAL PRODUCT INFORMATION | 1.2 SealStar F HMK LL | |
| Product No. | 2way 806-026-… 3way 806-881-… 4way 806-880-… 5way 805-992-… 6way 806-524-… |
| Gender of Article | female (F) |
| Product Specification | EPS-100059-00 |
| Process Specification | EVS-100059-00 |
| TECHNICAL PRODUCT INFORMATION | |
| Number of Pins | 2,3,4,5,6way |
| Pitch of Terminals | 4.0 mm |
| Wire Size Range | max. 1.00 mm2 |
| Sealed Application | sealed |
| Coding of Article | available |
| Voltage Class | ≤ 60 V |
| Number of Terminal Rows | 1 row |
| CPA (Connector Position Assurance) | with CPA |
| TPA (Terminal Position Assurance; Secondary Lock) | with TPA |
| Type of Compatible Terminal (Primary Lock) | Locking Lance (LL) |
| Contact Carrier Material | PA66 GF35 |
| MATCHING PARTS | |
| Compatible Terminal System | Hirschmann Automotive GmbH 709-125-..00 |
| Cavity Plug Diameter (ELA & ELB) no distribution via Hirschmann Automotive | Ø 3.55 mm connector cavity SWS is given on Hirschmann automotive terminal drawing |
| INTERFACE DESCRIPTION OF THE CONNECTOR | |
| Plug Socket Interface Drawing | 872-975-…00 |
| NUMBER OF PINS | CPA | ORDER/PRODUCT NO. | CODING | NEUTRAL PLUG SOCKET INTERFACE | BENCHMARK VALIDATION STATUS | ||
| 2 | ✓ | 806-026-... | available | 872-975-…00 | ZVEI: TK41/SG6 | USCAR2: S2 | IP-CODE: IPX7/IPX9K2 |
| 3 | ✓ | 806-881-... | available | 872-975-…00 | ZVEI: TK41/SG6 | USCAR2: S2 | IP-CODE: IPX7/IPX9K2 |
| 4 | ✓ | 806-880-... | available | 872-975-…00 | ZVEI: TK41/SG6 | USCAR2: S2 | IP-CODE: IPX7/IPX9K2 |
| 5 | ✓ | 805-992-... | available | 872-975-…00 | ZVEI: TK41/SG6 | USCAR2: S2 | IP-CODE: IPX7/IPX9K2 |
1 Tested with the temperature collective from LV124
2 Protective cap recommended for IPX9K
Further Details Available in the Product Catalog!
| ORDER/PRODUCT NO. | DGV WIRE SIZE RANGE | PRODUCT INFORMATION |
| 709-125-501 | 0.75-1.00 mm2 | Surface AG2-4 min. order quantity: 8,000 pcs. (1 pcs. spool) |
| 709-125-502 | 0.5 mm2 | Surface AG2-4 min. order quantity: 8,000 pcs. (1 pcs. spool) |
| 709-125-503 | 0.22-0.35 mm2 | Surface AG2-4 min. order quantity: 8,000 pcs. (1 pcs. spool) |
