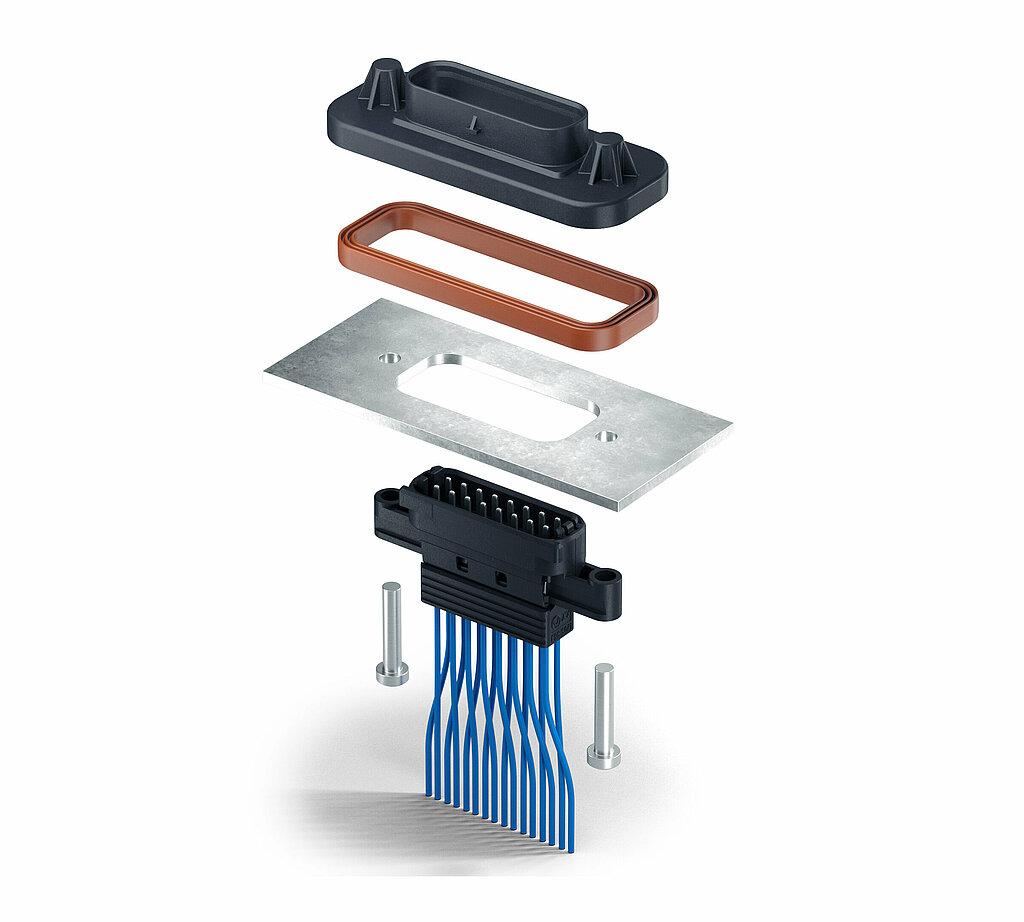

SealStar PinHeader

SealStar PinHeaders combine compact design, robustness, and watertight performance without compromising functionality. Developed in collaboration with leading OEMs and system suppliers, they offer flexible integration options for demanding automotive applications.





SealStar PinHeader - One-Piece



The SealStar One-Piece Pin Headers combine easy handling with outstanding robustness and reliability. Available with either a single- or dual-seal design, they provide enhanced protection against harsh environmental conditions and deliver a compact, durable and watertight connection solution without compromising electrical or mechanical performance.



The One-Piece design simplifies handling and assembly while reducing the number of individual components. This enables efficient installation and contributes to a reliable and robust connection. The SealStar One-Piece Pin Headers set the foundation for a new generation of Pin Headers, combining streamlined assembly with proven sealing and connection.

Johannes Ulrich is your Contact for Individual Questions

Global Product Manager Low Voltage Connectors

Characteristics:

  • watertight according to IPx8/IPx9K
  • standard interface interchangeable with multiple female housing suppliers
  • various variants available:
    » with Pressfit, Terminals, or soldering tips
    » with Flange screw connection form inside or/and outside

Characteristics:

  • watertight according to IPx9K
  • flexible application options
  • one-piece design for simplified handling and assembly
  • engineered to withstand extreme operating conditions
  • standard interface compatible with female housings from multiple suppliers
  • available with press-fit pins, terminals, and/or stamped grids
  • flange screw connection available from the inside and/or outside
  • high flexibility for dierent customer housing wall thicknesses
  • high flexibility of the PCB positioning along the X and Y axes
