0.5 EasyConn
Compact by design. Secure by connection.

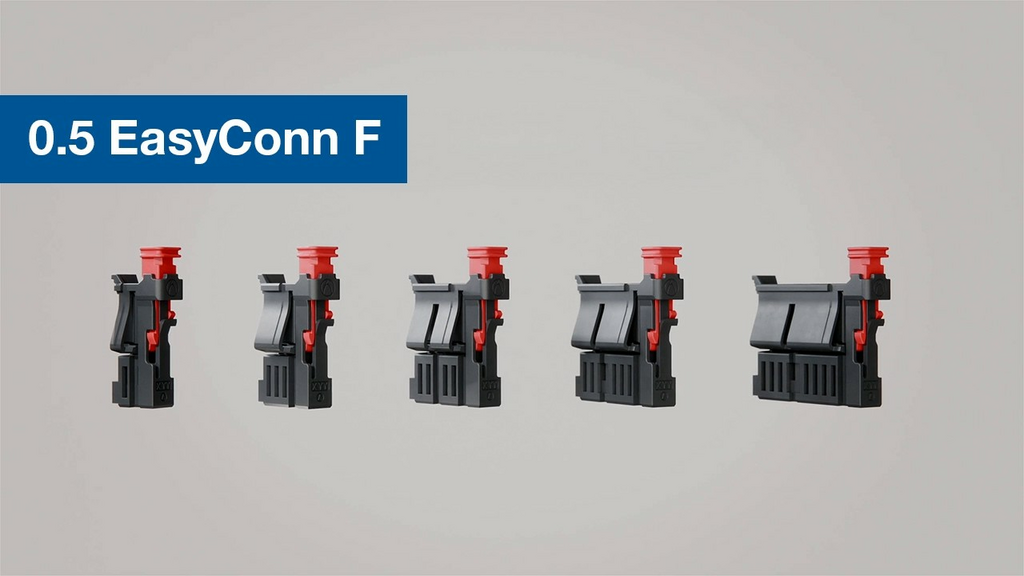

The EasyConn housing family is available in various pole configurations to meet different application requirements.

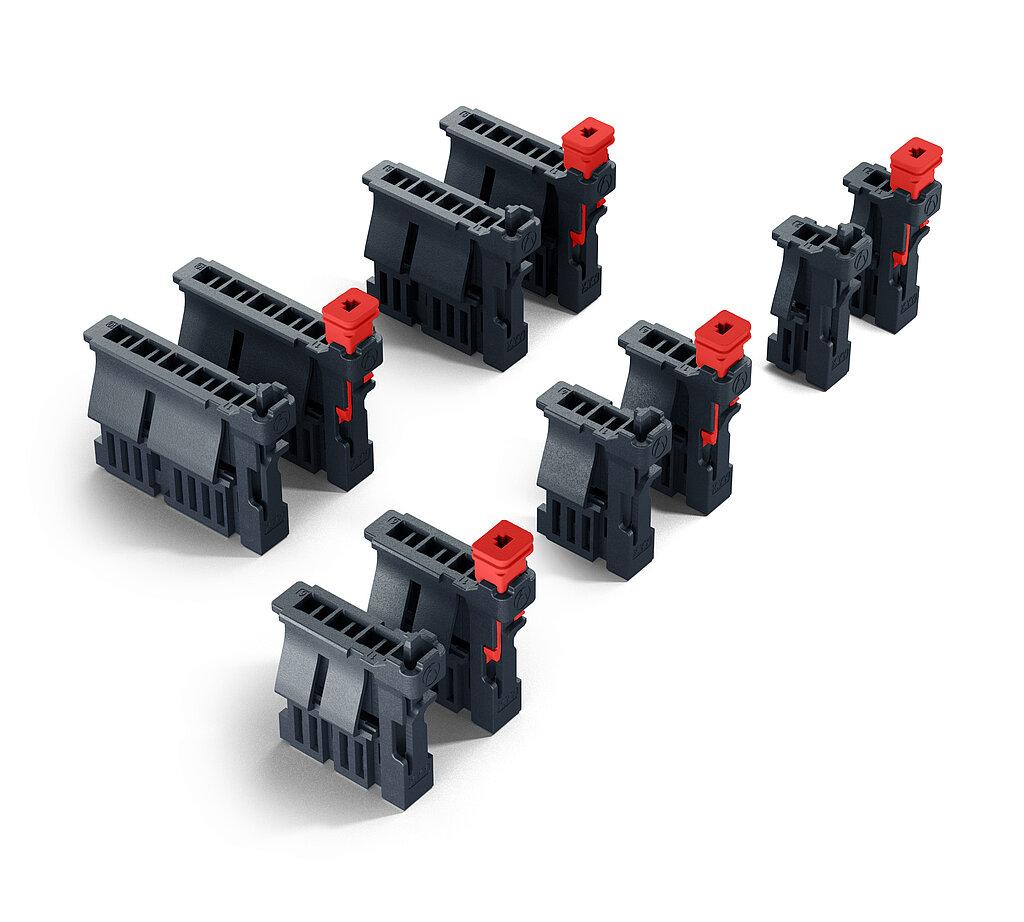

The EasyConn family combines a compact design with reliable and secure connection technology. The CPA enhances connection security without reducing the number of available pin positions compared to a version without a CPA. The TPA features an integrated locking mechanism on the contact carrier, ensuring reliable terminal retention. The EasyConn family is validated in accordance with DIN/TS 70214.
Johannes Ulrich is your Contact for Individual Questions
Global Product Manager Low Voltage Connectors
| GENERAL PRODUCT INFORMATION | 0.5 EasyConn | |
| Product No. | 2way 813-822-… 4way 714-424-… 4way 813-824-… 6way 714-426-… 6way 813-826-… 8way 714-428-… 8way 813-828-… 10way 714-430-… 10way 813-830-… |
| Gender of Article | female (F) |
| TECHNICAL PRODUCT INFORMATION | |
| Number of Pins | 2,4,6,8,10way |
| Pitch of Terminals | 1.8 mm |
| Wire Size Range | 0.13 – 0.35 mm² |
| Sealed Application | unsealed |
| Coding of Article | available |
| Voltage Class | ≤ 60 V |
| Number of Terminal Rows | 1 row |
| CPA (Connector Position Assurance) | with/without CPA |
| TPA (Terminal Position Assurance; Secondary Lock) | with TPA latch |
| Type of Compatible Terminal (Primary Lock) | Locking Lance (LL) |
| Contact Carrier Material | PBT GF20 |
| MATCHING PARTS | |
| Compatible Terminal System no distribution via Hirschmann Automotive | TE Connectivity NanoMQS LL: C-1703930 (drawing) APTIV CTS050 LL: 33124947 (drawing) KOSTAL MK0.50 LL: DOC01952957 (drawing) |
| Cavity Plug Diameter (ELA & ELB) no distribution via Hirschmann Automotive | not needed (unsealed application) |
| VALIDATION STATUS | |
| Product Subgroup Validation Status (Benchmark) | TLF0214: T3/V2/D1/G3 IP-Code: IPx0 Flame resistance: HB |
| NUMBER OF PINS | TYPE OF PRODUCTS | NUMBER OF TERMINAL ROWS | CPA | ORDER/PRODUCT NO. | CODING OF PRODUCTS |
| 2 | F | 1 | without CPA | 714-422-501 | A |
| 2 | F | 1 | with CPA | 813-822-501 | A |
| 4 | F | 1 | without CPA | 714-424-501 | A, B, C, D |
| 4 | F | 1 | with CPA | 813-824-501 | A, B, C, D |
| 6 | F | 1 | without CPA | 714-426-501 | A |
| 6 | F | 1 | with CPA | 813-826-501 | A |
| 8 | F | 1 | without CPA | 714-428-501 | A |
| 8 | F | 1 | with CPA | 813-828-501 | A |
| 10 | F | 1 | without CPA | 714-430-501 | A |
| 10 | F | 1 | with CPA | 813-830-501 | A |
