Benefits at a Glance:
- ergonomically designed dress covers for the optimum power transmission during insertion
- same dress cover is compatible with multiple connectors
- simple processing technology
- intuitive assembling
- tests according to GS95006-7-1 (LV 214) / MBN 10384 (LV 214) / VW 75174 (LV 214) as well as higher requirements in terms of robustness (assembly/disassembly and rotation prevention)
- monobloc dress covers with film hinge
- locating surface for mounting aid
- inspection opening to control the closed locking position
- uptake geometry nominal diameter 4.5/7.5
- cable outlet: 180°, designed straightly for the nominal diameter 4.5
- cable outlet: 90°, designed lengthways for the nominal diameter 4.5/7.5
- dress covers can be integrated on both sides
- material: PA6
- temperature resistance: -40° C to +140° C (objective: up to +150° C)
- chemical resistance according to GS 95024-3-1 (LV 124) / MBN 10306 (LV 124) / VW 80000 (LV 124)
- suitable for high-pressure and steam cleaning according to IPX9K
CABLE OUTLET | 180°, straight exit designed for nominal width (NW) 4.5
90°, left or right exit designed for nominal width (NW) 4.5/7.5 mounting on both sides |
COLOR | black |
MATERIAL | PA6 |
TEMPERATURE RANGE | -40° C to +140° C |
CHEMICAL RESISTANCE | according to GS 95024-3-1 (LV 124), MBN 10306 (LV 124), VW 8000 (LV 124) |

CAVITIES | VARIANT | NW | ORDER/PRODUCT NO. | BOTH SIDE MOUNTING (EXIT L/R) | SealStar 1.2 1) | SealStar 2.8 1) | SealStar HMK 1.2 1) |

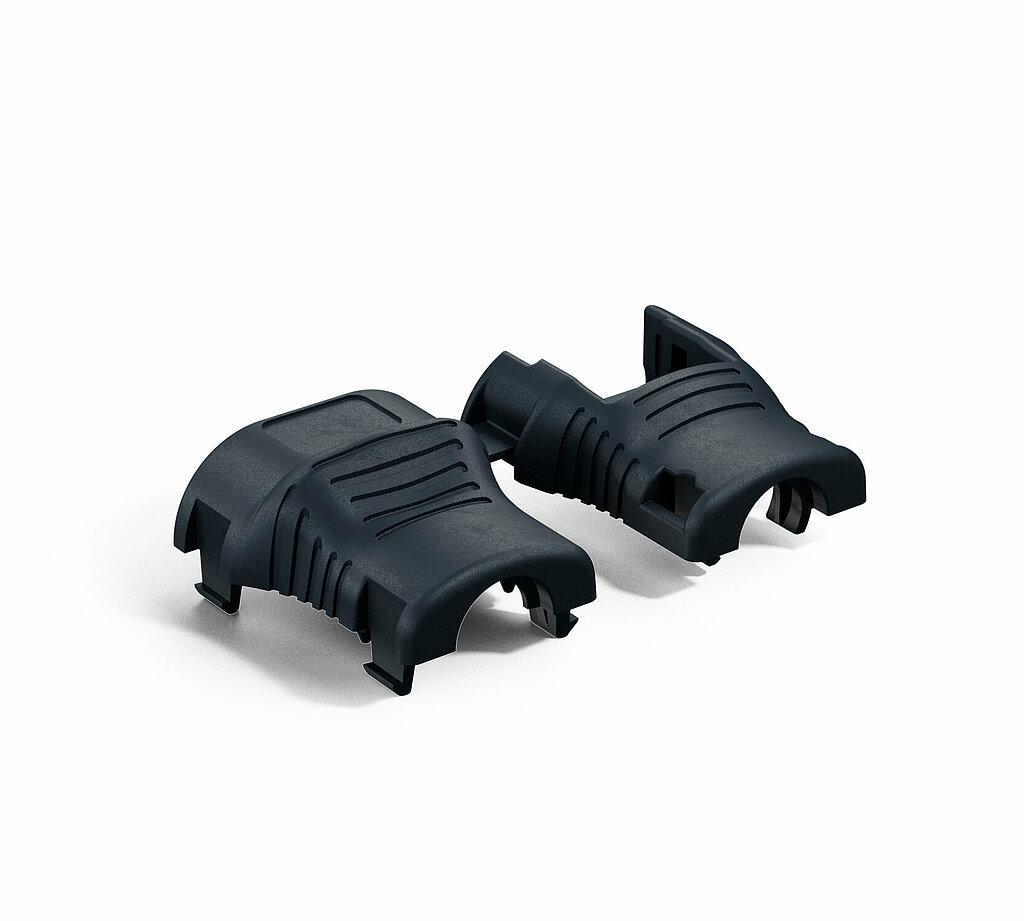

2 | 180° | 4.5 | 707-130-501 | not applicable | 805-120-... 2) 872-857-... 2) | not applicable | 806-026-... 2) |

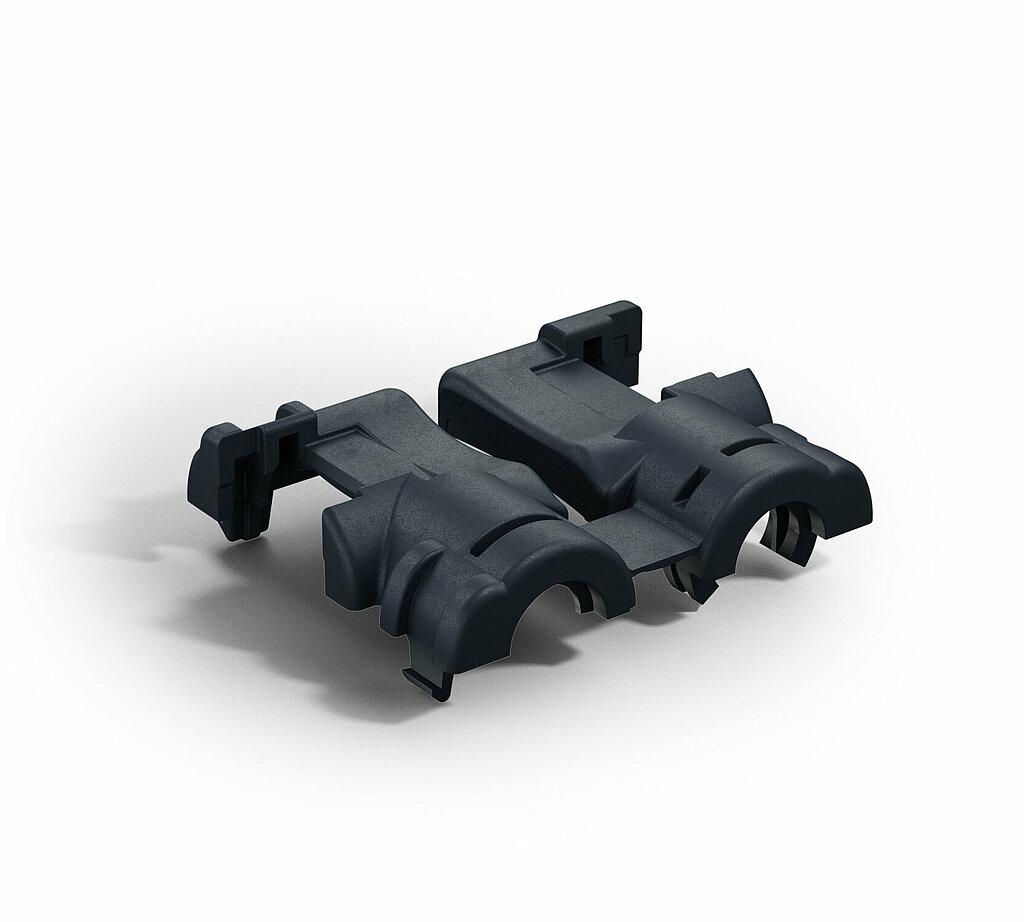

2 | 90° | 4.5 | 707-131-501 | applicable | 805-120-... 2) 872-857-... 2) | not applicable | 806-026-... 2) |

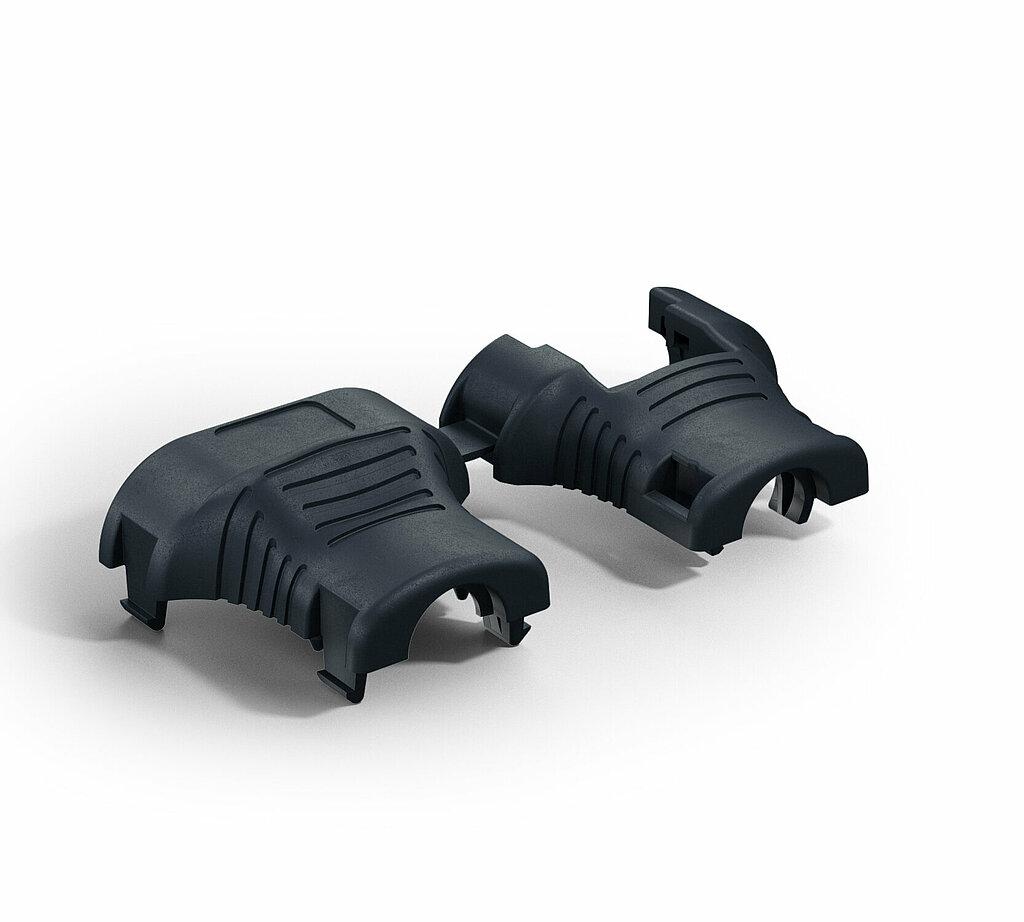

3 | 180° | 4.5 | 707-132-501 | not applicable | 805-121-... 2) 872-858-... 2) 872-597-... 2) | 807-872-... 2) 805-198-... 2) | 806-881-... 2) |

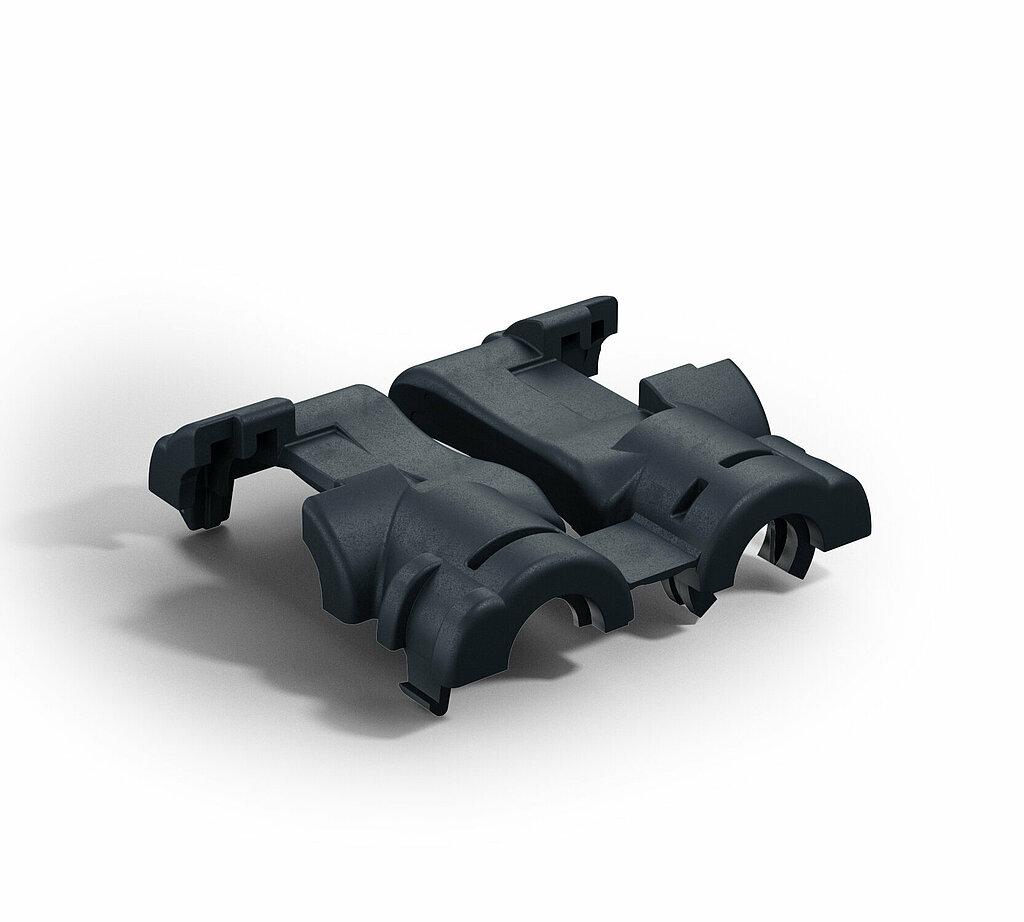

3 | 90° | 4.5 | 707-133-501 | applicable | 805-121-... 2) 872-858-... 2) 872-597-... 2) | 807-872-... 2) 805-198-... 2) | 806-881-... 2) |

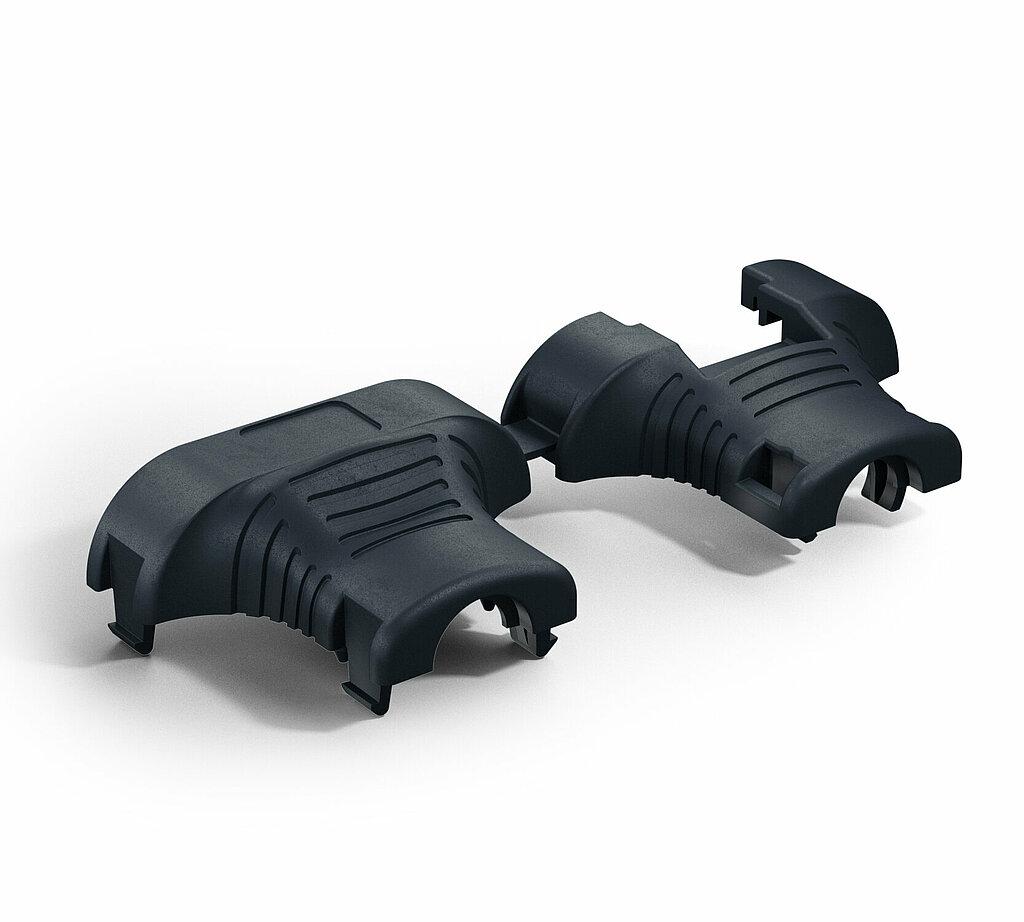

4 | 180° | 4.5 | 707-134-501 | not applicable | 805-122-... 2) 872-859-... 2) | 807-873-... 2) 805-199-... 2) | 806-880-... 2) |

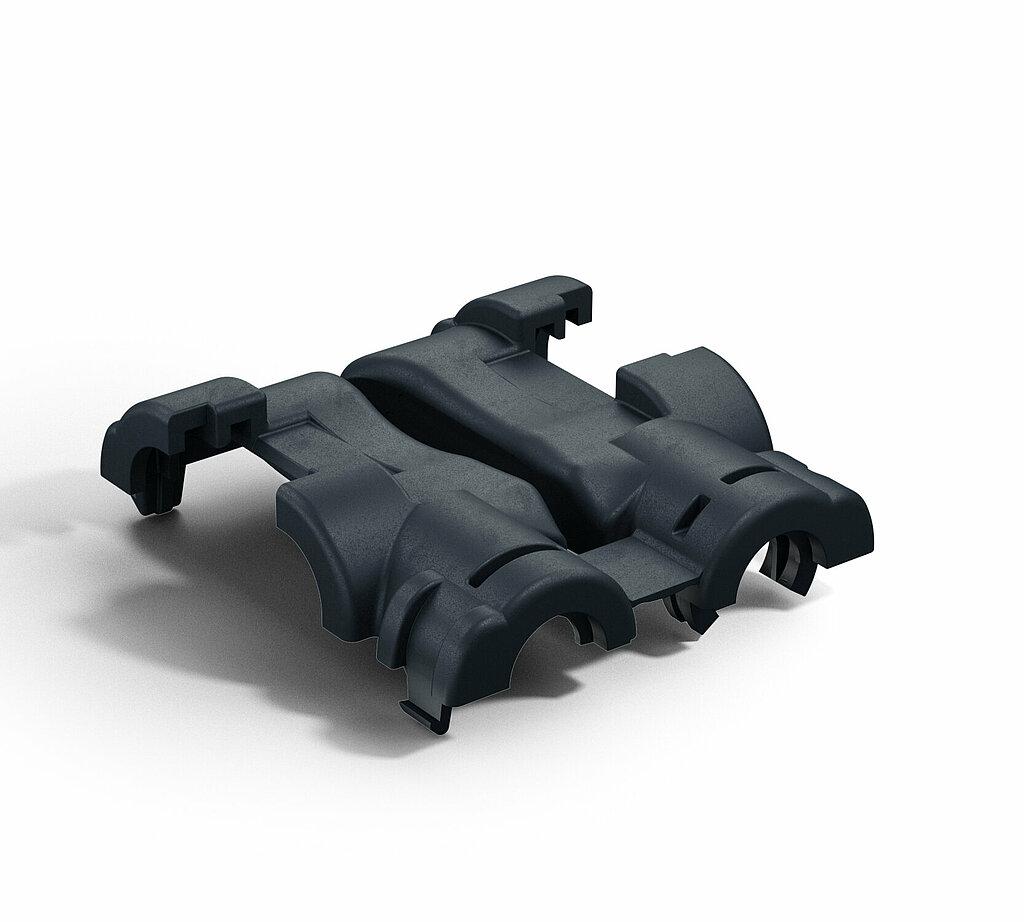

4 | 90° | 4.5 | 707-135-501 | applicable | 805-122-... 2) 872-859-... 2) | 807-873-... 2) 805-199-... 2) | 806-880-... 2) |

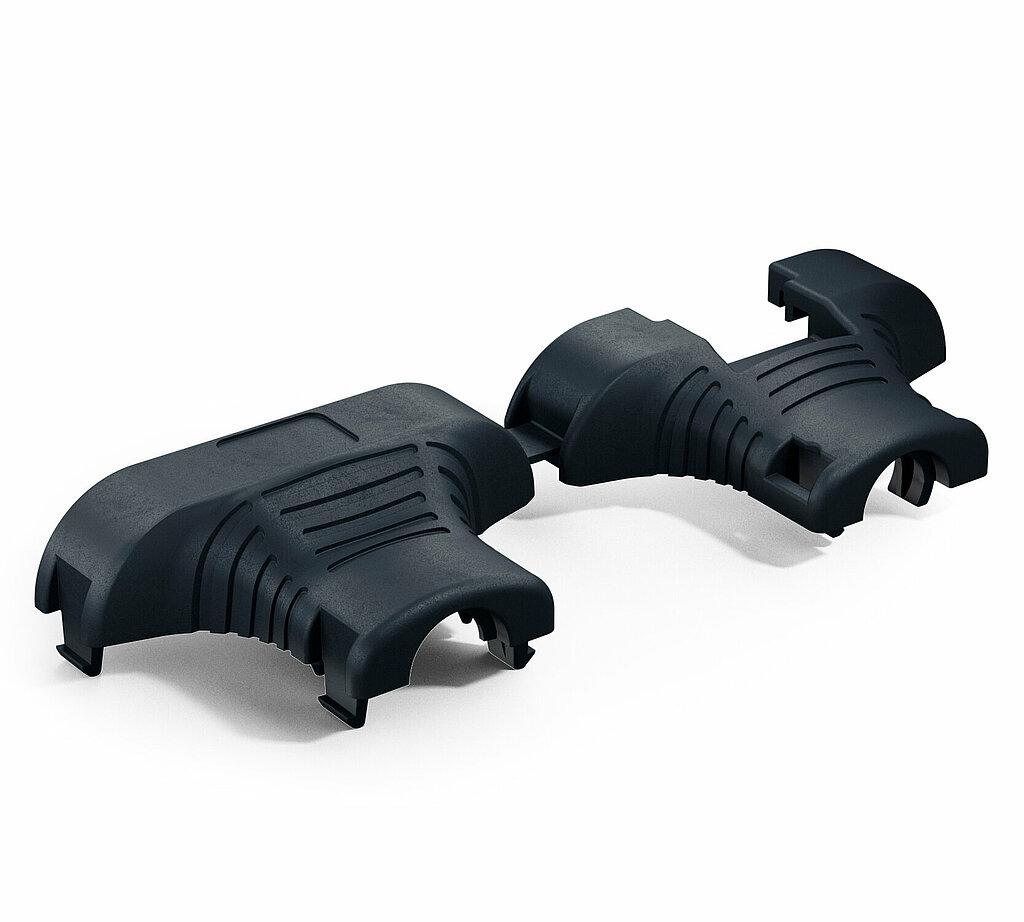

5 | 180° | 4.5 | 707-136-501 | not applicable | 805-123-... 2) 872-860-... 2) | 807-874-... 2) 805-200-... 2) | 805-992-... 2) |

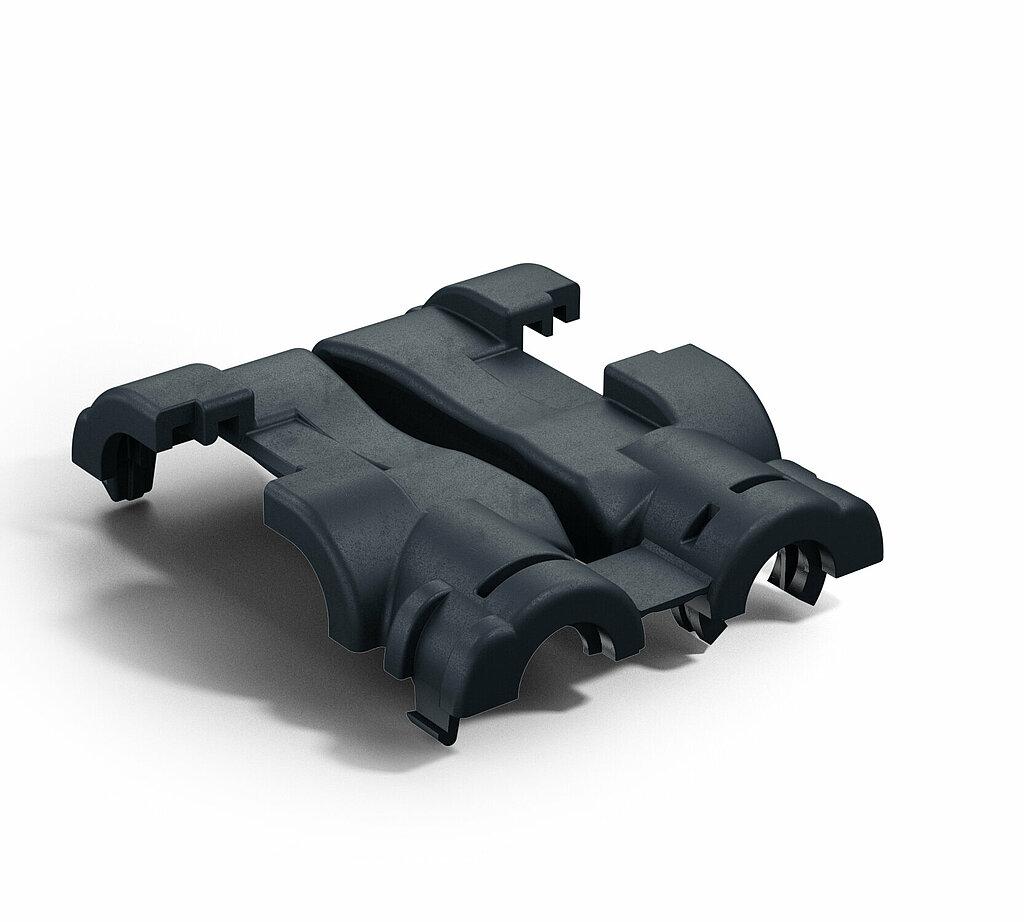

5 | 90° | 4.5 | 707-137-501 | applicable | 805-123-... 2) 872-860-... 2) | 807-874-... 2) 805-200-... 2) | 805-992-... 2) |

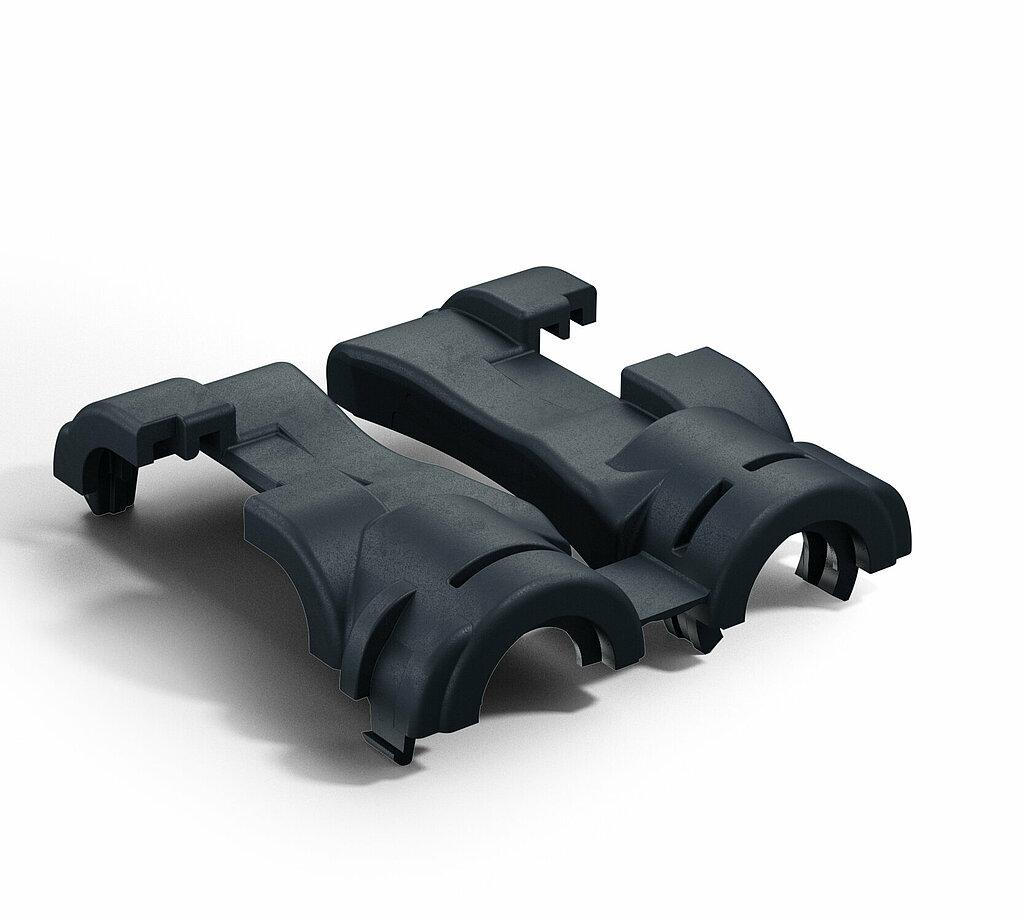

5 | 90° | 7.5 | 707-138-501 | applicable | 805-123-... 2) 872-860-... 2) | 807-874-... 2) 805-200-... 2) | 805-992-... 2) |
on request
1) matching Hirschmann Automotive Connector Order/Product No.
2) more details in our product specific SealStar flyers
