HPS140 2+2

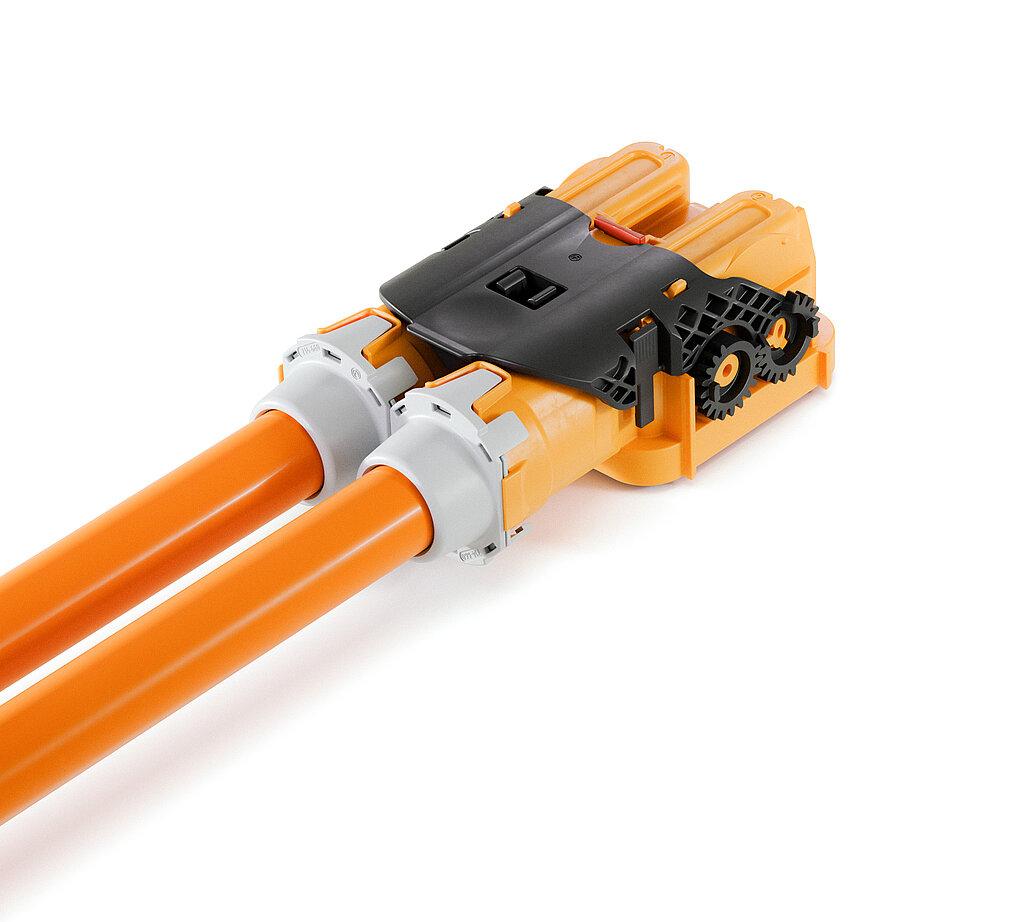

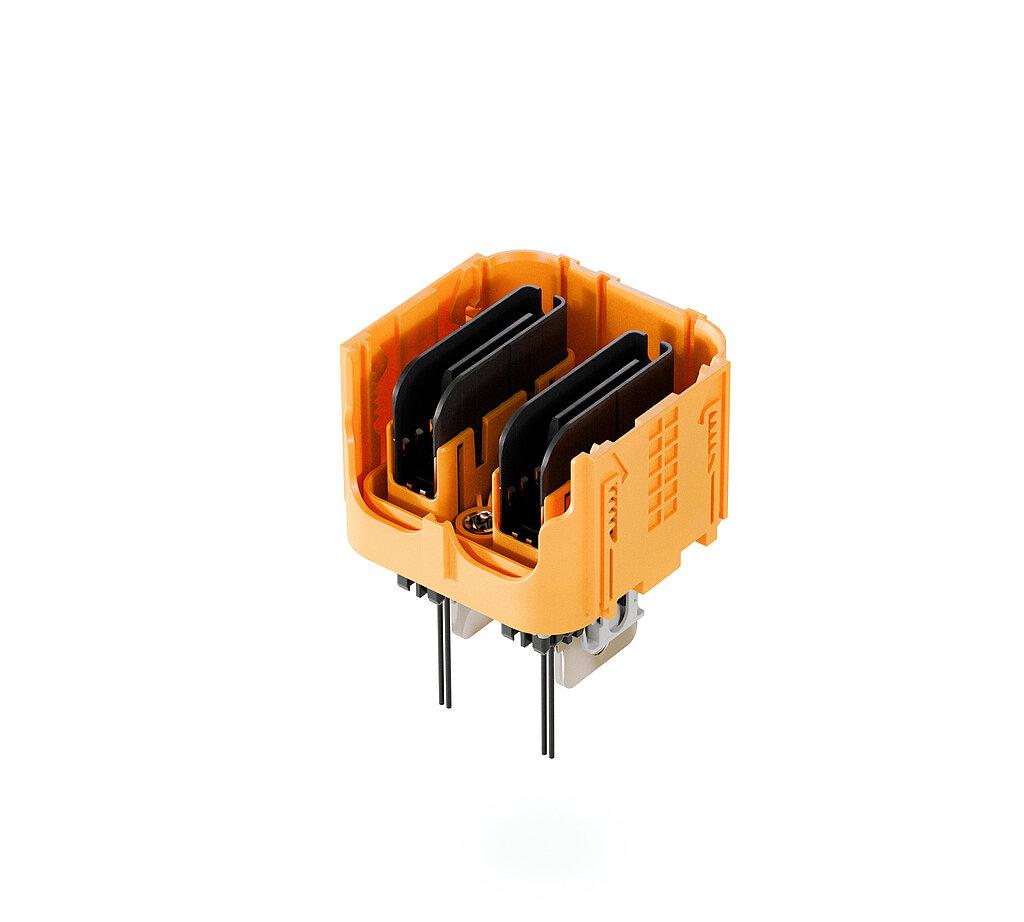

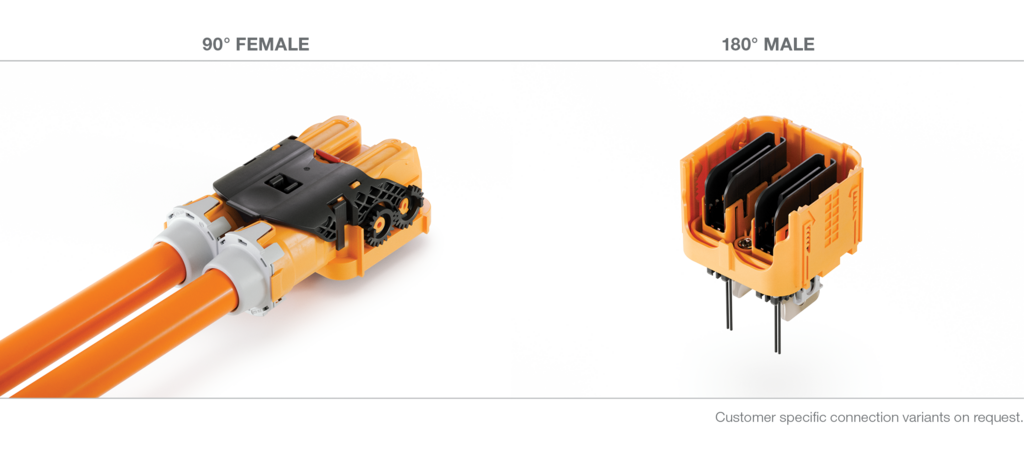

With the HPS140 2+2, Hirschmann Automotive introduces a compact high-current connector system for demanding electric powertrain applications, including inverter, HV battery, and e-motor connections. Its 2+2 layout, with two high-voltage power contacts and two HVIL contacts, delivers high-current performance in a minimal installation space.
The connector carries a continuous current of 292 A at 85 °C with a 70.0 mm² conductor cross-section and offers IP6K9K/IPX8 protection as well as safety-oriented HVIL functionality. Optional features such as a 360° shielded interface, a two-step unmating concept, modular header assembly variants, temperature sensing, and tool-operated CPA opening allow the system to be tailored to specific customer and application requirements.

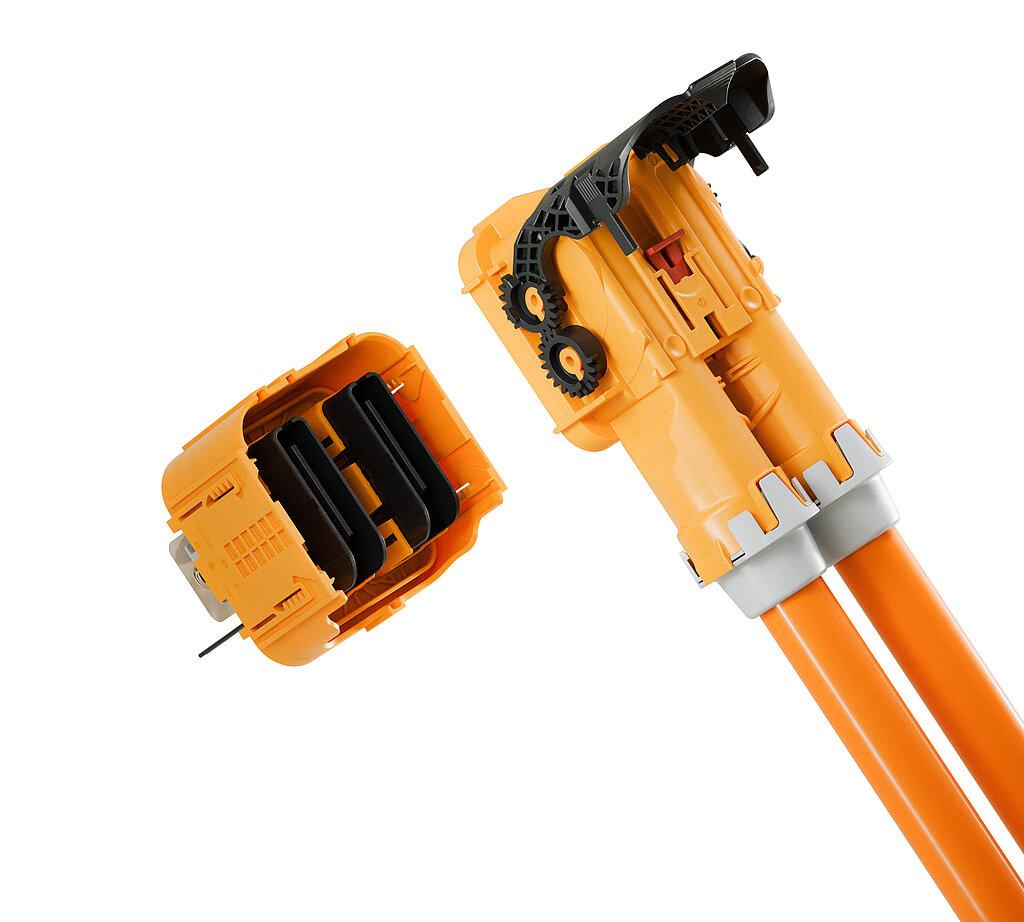

Designed for high mechanical loads, the HPS140 2+2 focuses on robustness, vibration resistance, and efficient assembly. An innovative rack-and-pinion mating mechanism keeps insertion forces low, and its gears provide four support points on the housing for stability under vibration. Repair solutions for both male and female housings and suitability for fully automated assembly further simplify integration and processing.
Global Product Manager HV
- dimension (LxWxH): 127.5×74×51 mm
- low shield contact resistance
- innovative 4-way rack/gear assembly mechanism
- low assembly force concept, max. 29 N
- modular header installation options
- repair solution for male and female housing
- shield braid fixation without tape pre-fixation
- optional two-step connector unplug for added safety
- optional temperature sensor
- optional captive screws, adhesive aggregate seal and CPA version
- fully automated assembly possible
- the HFT20 contact system is an in-house development by Hirschmann Automotive
| PARAMETERS | HPS140 1+1 |
| Current Class | current class 4 connector |
| Applications | inverter, HV battery, eMotor, ... |
| Number of Pins | 2 (high voltage) + 2 (HVIL optional) |
| Operating Condition | 1,000 VDC |
| Voltage Class | class B1 according ISO 6469-3:2011 60 VDC < U ≤ 1,000 VDC 25 VAC < Ueff ≤ 707 VAC (15-150 Hz) |
| Ambient Condition | -40° C to +125° C |
| Maximum Altitude | 5,600 m |
| Maximum Current Load | 292 A at 85° C (70.0 mm²) |
| IP-Degree of Protection | IPXXB+2 UL (unmated), IPXXD (mated) |
| Watertightness | IP6K9K, IPX8 |
| EMC Performance (6.00 mm2) | until 2 MHz < 2.5 mΩ/m until 30 MHz < 5 mΩ/m > 65 dB (30 MHz to 300 MHz) |
| Shielded Area | shielded or unshielded |
| Vibration Strength | class 2 according to TFL 0214 / PG17 Tmax +125° C |
| Mating/Unmating Force | < 29 N |
| Secondary Lock System | activating force < 40 N, no unintentional opening possible |
| Koshiri Safety | yes |
| Polarization/Coding | incorrect insertion force > 150 N |
| CPA System | operating force < 30 N |
| HVIL System | minimum 1.0 mm (nominal 2.0 mm), leading |
| CONTACT SYSTEM INFORMATION | |
| Contact System | HFT20 (20 mm flat terminal) |
| Material/Surface | Cu-Leg./Ag |
| Connection | welded |
| Mating Cycles | maximum 50 cycles |
| CUSTOMER-SPECIFIC INFORMATION | |
| Cable Cross Section | 16 mm²-70 mm² |
| Contact Carrier Codings | A, B, C, D, Z possible |
