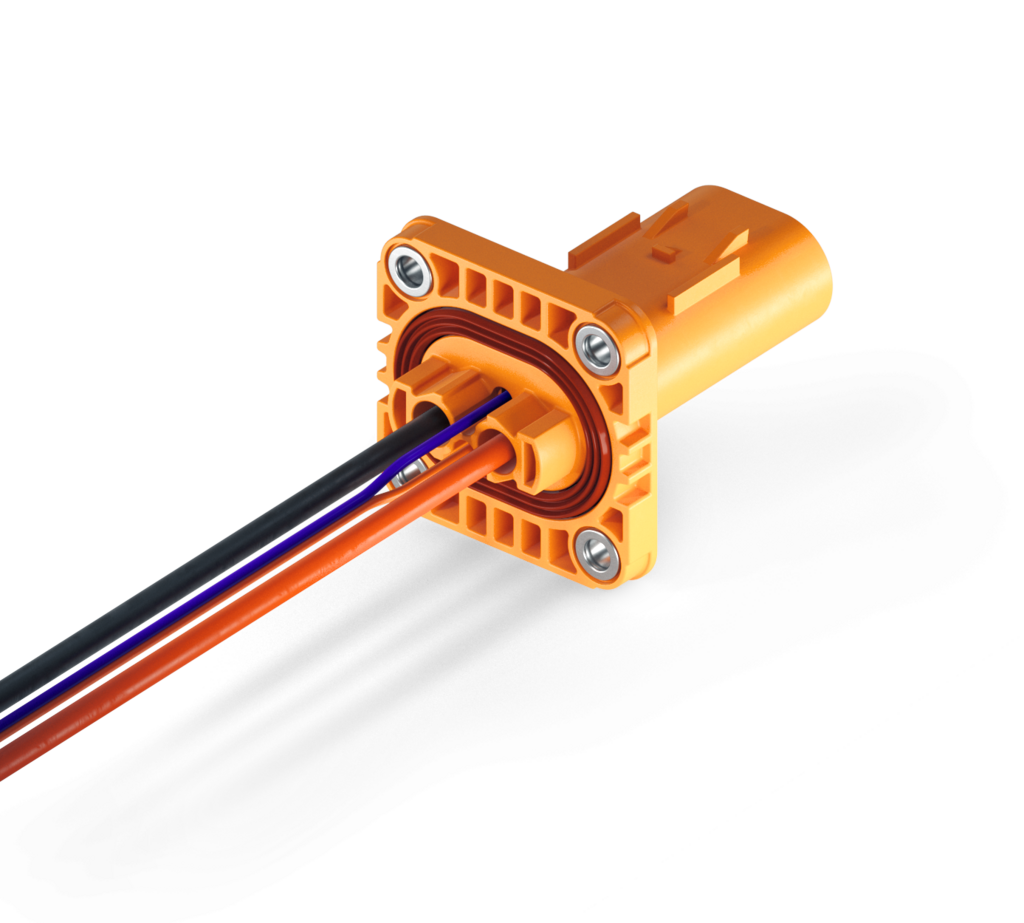

HPS28 2+2 unshielded
Step into a new era of high voltage connectivity with our unshielded high voltage connection system, designed to redefine the way auxiliary units in electric vehicles are connected.
Whether you’re an automotive manufacturer or a technology enthusiast, our connector offers a seamless solution for efficient and streamlined connections of auxiliary units. Driven by innovation, our unshielded high voltage connector system sets a new standard for auxiliary unit integration.
Its cutting-edge design ensures quick, secure, and effortless processing, making it an essential component for enhancing the connection of auxiliary units in electric vehicles.
Global Product Manager HV
- compliant with several automotive test specifications
- unshielded connector system
- easy processing
- robust and simple design
- IPXXB+ with optional HVIL
- different terminal options
- high current load at high ambient temperatures
- watertight according to IP6K9K
| PARAMETER | HPS28 2+2 unshielded |
| Current Class | current class 1 connector |
| Applications | auxiliary units |
| Number of Pins | 2 (high voltage) + 2 (HVIL optional) |
| Operating Condition | U = 1,000 VDC |
| Voltage Class | class B according ISO 6469-3:2011 60 VDC < U ≤ 1,000 VDC 25 VAC < Ueff ≤ 707 VAC (15-150 Hz) |
| Ambient Condition | -40° C to +125° C |
| Maximum Altitude | 5,600 m |
| Maximum Current Load | 27 A at 80° C (1.5 mm2 Cu) 33 A at 80° C (2.5 mm2 Cu) 42 A at 80° C (4.0 mm2 Cu) |
| Maximum Operating Temperature | +180° C |
| IP-Degree of Protection | IPXXB+ UL (unmated), IPXXD (mated) |
| Watertightness | IP6K9K, IPX8 |
| Shielded Area | unshielded |
| Vibration Strength | according to TFL 0214 / PG17 V2 Tmax +140° C (first fixation point at 200 mm) |
| Mating/ Unmating Force | < 50 N |
| Secondary Lock System | activating force < 40 N, no unintentional opening possible |
| Koshiri Safety | yes |
| Polarization/ Coding | incorrect inseration force > 150 N |
| CPA System | operating force < 30 N optional opening only with tool, closed CPA position recognizable by scannable DMC code |
| HVIL System | min. 1.0 mm, leading |
| CONTACT SYSTEM INFORMATION | |
| Contact System | 2.8 x 0.8 (KT/MCP/CTS/MAK), Ag, crimped |
| Material/ Surface | Cu-Leg., CuNiSi, Ag |
| Connection | crimped |
| Mating Cycles | max. 50 cycles |
| CUSTOMER-SPECIFIC INFORMATION | |
| Cable Cross Section | 1.5 mm2, 2.5 mm2, 4.0mm2 |
| Contact Carrier Codings | A, B, C, D, Z |
