HPS280 2+2
The HPS280 2+2 is the most powerful connector in Hirschmann Automotive’s HPS 2+2 family. Developed for high-power electric powertrain applications such as inverter, HV battery, and e-motor connections, its 2+2 layout with two high-voltage power contacts and two HVIL contacts transfers high power in a compact package.
With a continuous current rating of 414 A at 85 °C and a 95.0 mm² conductor cross-section, the HPS280 2+2 is built for the highest electrical loads. IP6K9K/IPX8 protection and safety-oriented HVIL functionality come as standard. An optional 360° shielded interface, a two-step unmating concept, modular header assembly variants, temperature sensing, and tool-operated CPA opening allow the system to be configured for individual customer and application requirements.

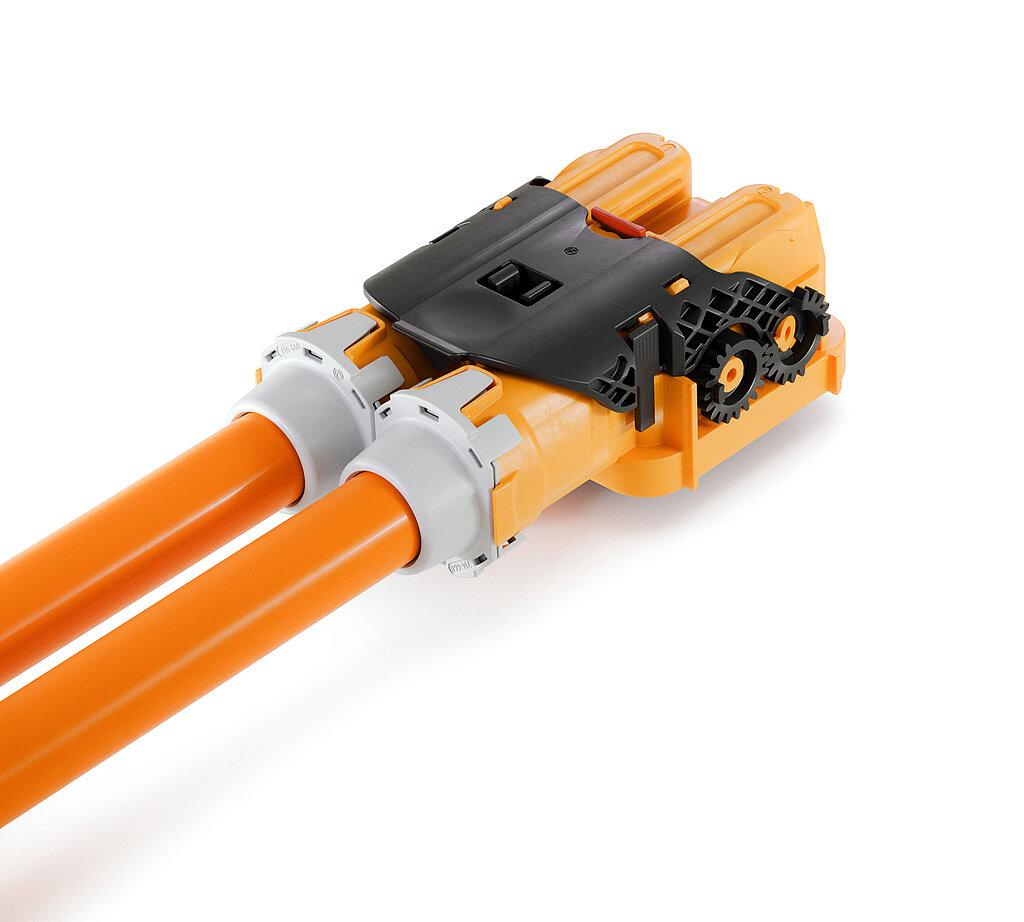

A robust design with high vibration resistance makes the connector well suited to demanding mechanical conditions. Its rack-and-pinion mating mechanism reduces insertion forces, while the gears support the housing at four points to keep the connection stable under vibration. Repair solutions for male and female housings and readiness for fully automated assembly ensure efficient integration and processing.
Global Product Manager HV
- dimension (LxWxH): 137.5×80×53.5 mm
- low shield contact resistance

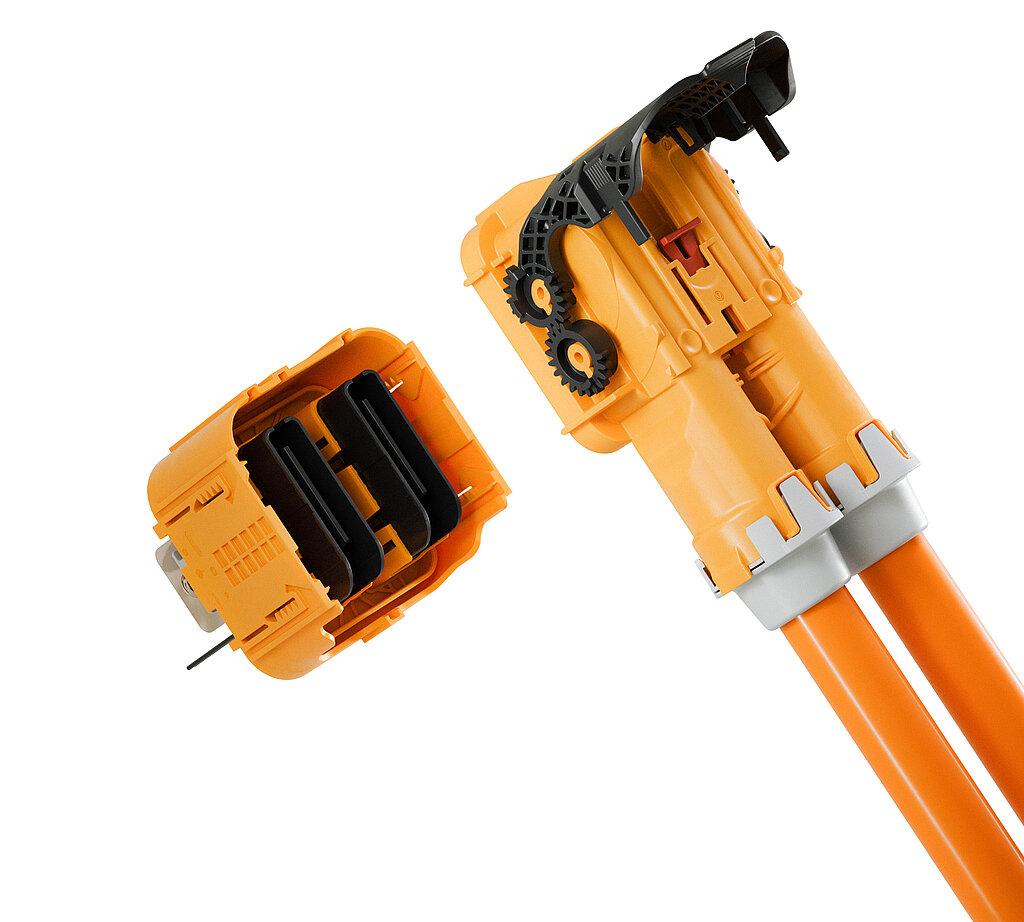

- innovative 4-way rack/gear assembly mechanism
- low assembly force concept, max. 36 N

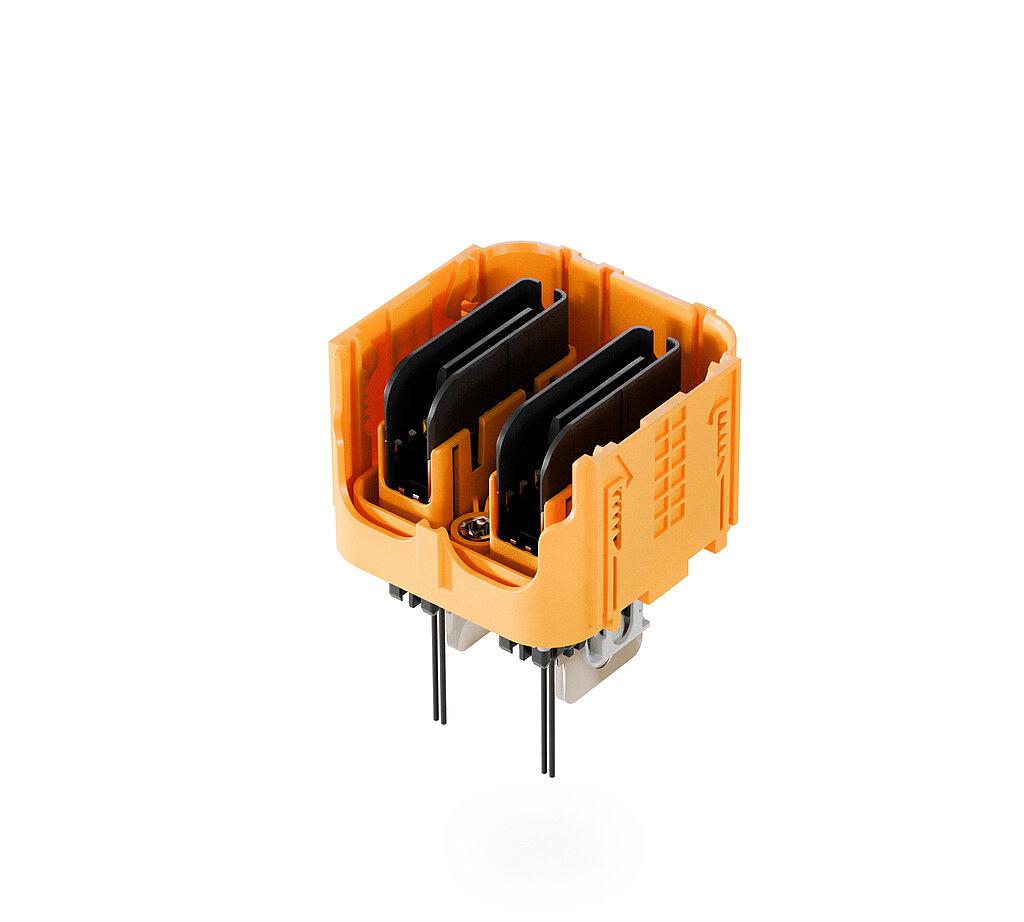

- modular header installation options
- repair solution for male and female housing
- shield braid fixation without tape pre-fixation
- optional two-step connector unplug for added safety
- optional temperature sensor
- optional captive screws, adhesive aggregate seal and CPA version
- fully automated assembly possible
- the HFT34 contact system is an in-house development by Hirschmann Automotive
| PARAMETERS | HPS280 2+2 |
| Current Class | current class 5 connector |
| Applications | inverter, HV battery, eMotor, ... |
| Number of Pins | 2 (high voltage) + 2 (HVIL optional) |
| Operating Condition | 1,000 VDC |
| Voltage Class | class B1 according ISO 6469-3:2011 60 VDC < U ≤ 1,000 VDC 25 VAC < Ueff ≤ 707 VAC (15-150 Hz) |
| Ambient Condition | -40° C to +125° C |
| Maximum Altitude | 5,600 m |
| Maximum Current Load | 414 A at 85° C (95.0 mm²) |
| IP-Degree of Protection | IPXXB+2 UL (unmated), IPXXD (mated) |
| Watertightness | IP6K9K, IPX8 |
| Shielded Area | shielded or unshielded |
| Vibration Strength | class 2 according to TFL 0214/PG17 Tmax +125° C |
| Mating/Unmating Force | < 36 N |
| Secondary Lock System | activating force < 40 N, no unintentional opening possible |
| Koshiri Safety | yes |
| Polarization/Coding | incorrect insertion force > 150 N |
| CPA System | operating force < 30 N |
| HVIL System | minimum 1.0 mm (nominal 2.0 mm), leading |
| CONTACT SYSTEM INFORMATION | |
| Contact System | HFT34 (34 mm flat terminal) |
| Material/Surface | Cu-Leg./Ag |
| Connection | welded |
| Mating Cycles | maximum 50 cycles |
| CUSTOMER-SPECIFIC INFORMATION | |
| Cable Cross Section | 70 mm²-95 mm² |
| Contact Carrier Codings | A (available)/B, C, D, Z possible |
