HPS100 2+2

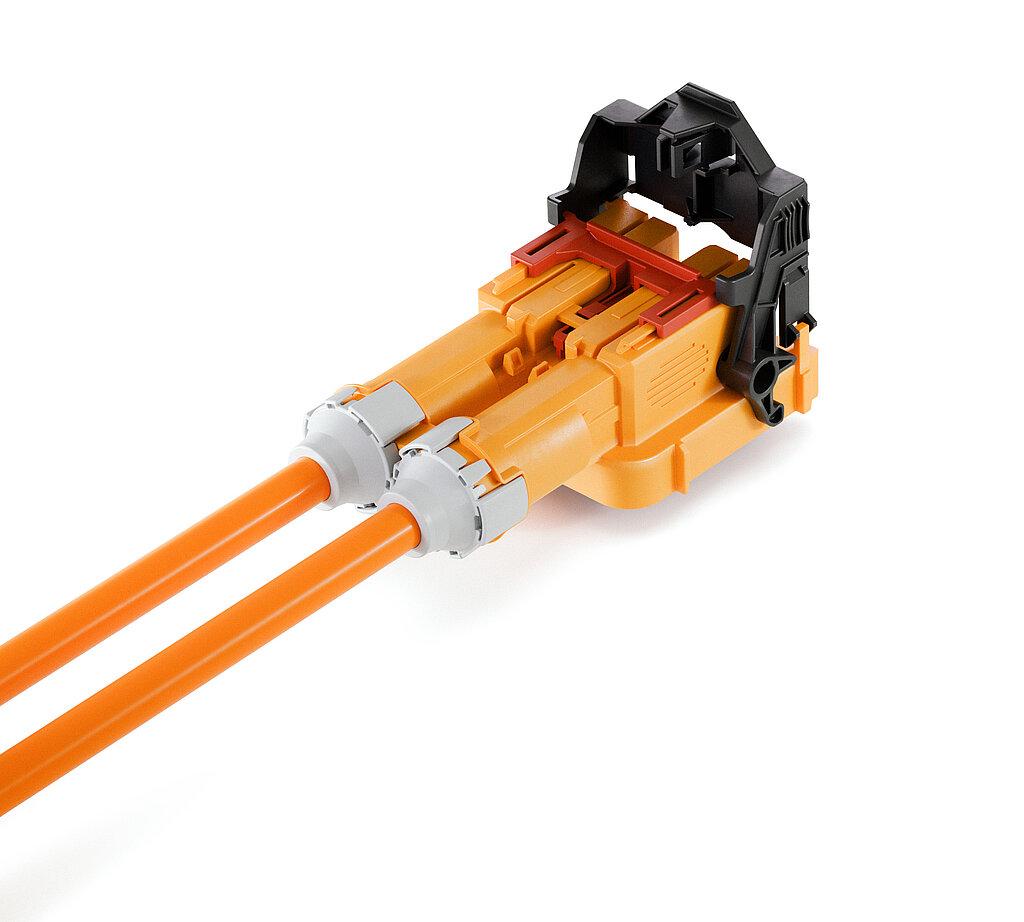

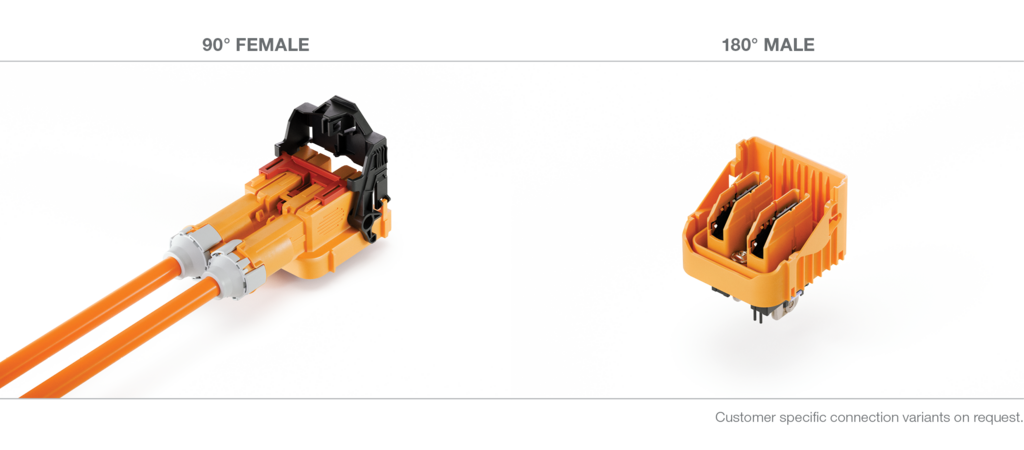

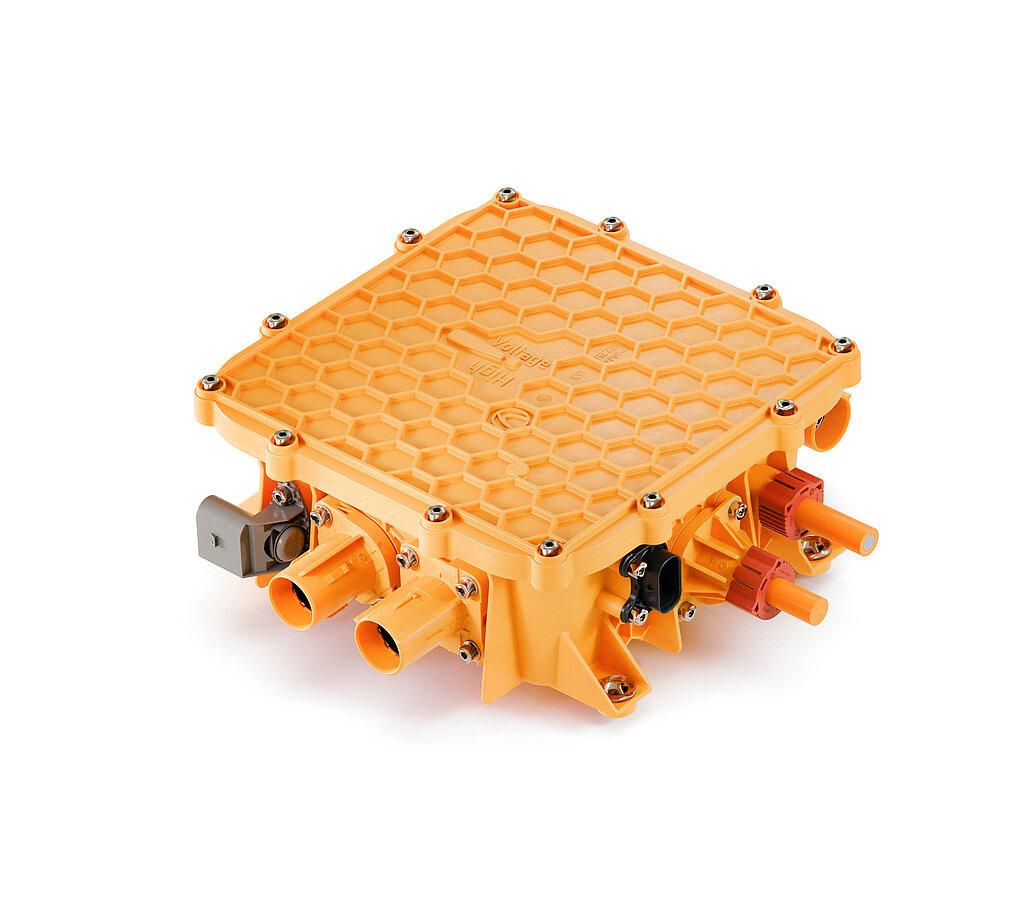

The HPS100 2+2 is Hirschmann Automotive’s compact current class 3 connector system for electric powertrain applications such as inverters, high-voltage batteries, e-motors, and DC/DC converters. Its two high-voltage contacts and two HVIL contacts are standard but can be omitted if not required, providing reliable high-voltage connectivity in a space-saving design.
Built for demanding operating environments, the connector is rated for up to 1,000 V DC, ambient temperatures from -40 °C to +125 °C, and installation altitudes of up to 5,600 m. IP6K9K/IPX8 protection, an optional 360° shield, an HVIL with first-break, lastmake functionality and an integrated CPA ensure dependable operation and secure connections.

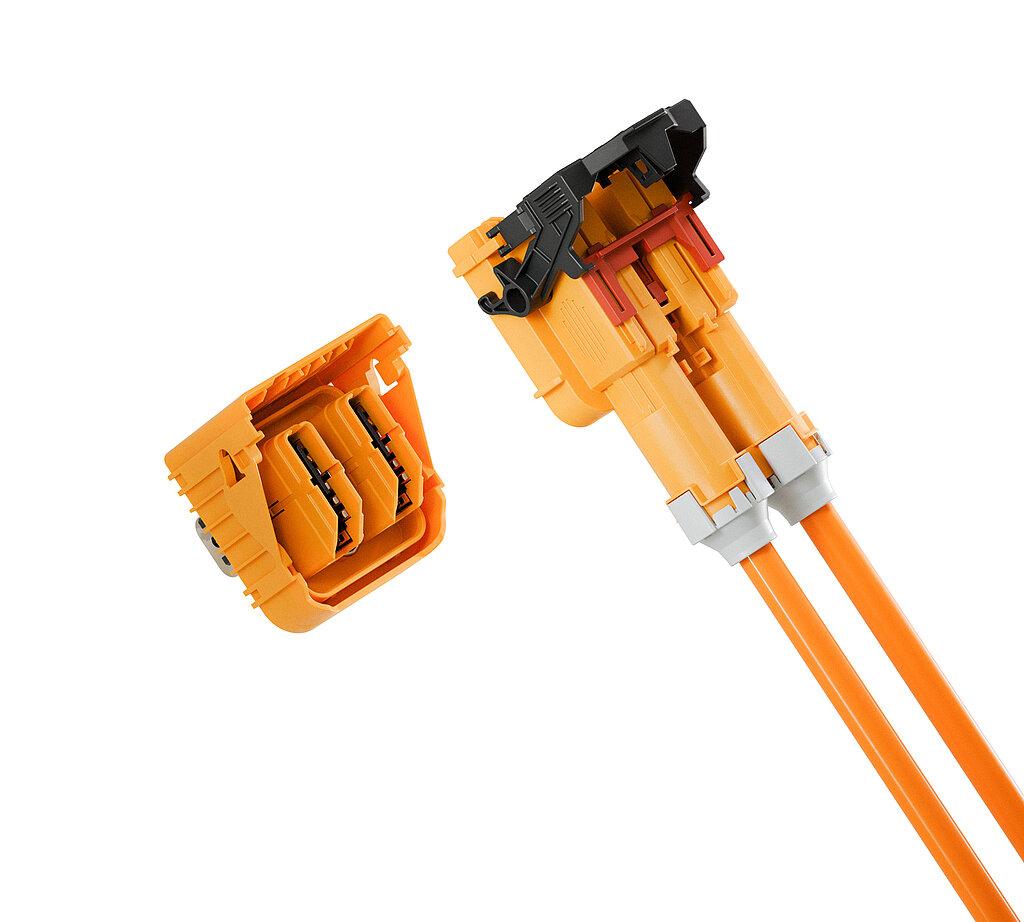

An ergonomic lever mechanism keeps mating and unmating forces below 50 N, and the connector is suitable for manual, semi-automated and fully automated assembly. Repair solutions for male and female connectors make servicing easy, while options such as a two-step unmating concept, modular header installation, temperature sensing, captive screws, and tool-operated CPA opening allow adaptation to individual customer requirements.
Global Product Manager HV
- dimension (LxWxH): 117.5×66.5×48 mm
- low shield contact resistance
- ergonomic lever operating concept
- low mating/unmating force < 50 N

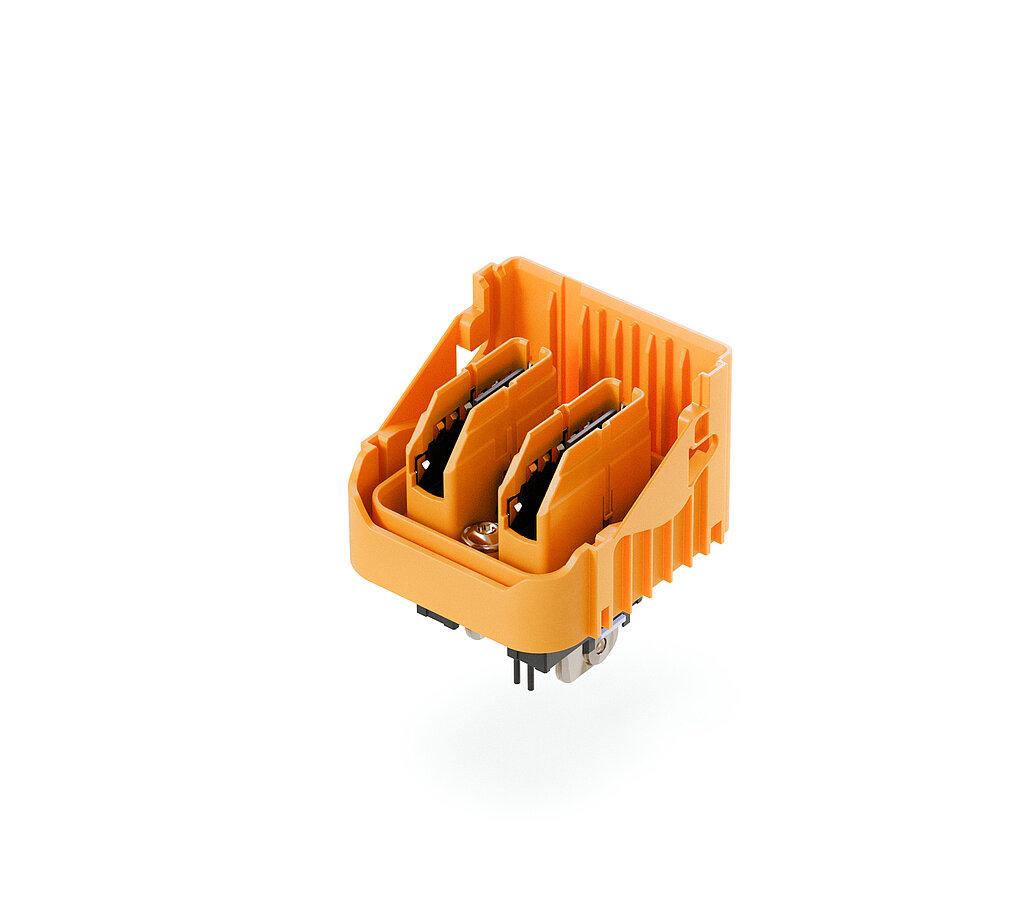

- modular header installation options
- repair solution for male and female housing
- shield braid fixation without tape pre-fixation
- optional two-step connector unplug for added safety
- optional temperature sensor
- optional captive screws, adhesive aggregate seal and CPA version
- fully automated assembly possible
- the HFT14.5 contact system is an in-house development by Hirschmann Automotive
| PARAMETERS | HPS100 2+2 |
| Current Class | current class 3 connector |
| Applications | inverter, HV battery, eMotor, DC/DC converter, ... |
| Number of Pins | 2 (high voltage) + 2 (HVIL optional) |
| Operating Condition | 1,000 VDC |
| Voltage Class | class B1 according ISO 6469-3:2011 60 VDC < U ≤ 1,000 VDC 25 VAC < Ueff ≤ 707 VAC (15-150 Hz) |
| Ambient Condition | -40° C to +125° C |
| Maximum Altitude | 5,600 m |
| Maximum Current Load | 119 A at 85° C (16.0 mm²) |
| IP-Degree of Protection | IPXXB+2 UL (unmated), IPXXD (mated) |
| Watertightness | IP6K9K, IPX8 |
| Shielded Area | shielded or unshielded |
| Vibration Strength | class 2 according to TFL 0214/PG17 Tmax +125° C |
| Mating/Unmating Force | < 50 N |
| Secundary Lock System | activating force < 50 N, no unintentional opening possible |
| Koshiri Safety | yes |
| Polarization/Coding | incorrect insertion force > 150 N |
| CPA System | operating force < 30 N |
| HVIL System | minimum 1.0 mm (nominal 2.0 mm), leading |
| CONTACT SYSTEM INFORMATION | |
| Contact System | HFT14.5 (14.5 mm flat terminal) |
| Material/Surface | Cu-Leg./Ag |
| Connector | crimped/welded |
| Mating Cycles | maximum 50 cycles |
| CUSTOMER-SPECIFIC INFORMATION | |
| Cable Cross Section | 10 mm²-16 mm² crimped (25 mm²-35 mm² welded) |
| Contact Carrier Codings | A, B, C, D, Z possible |
