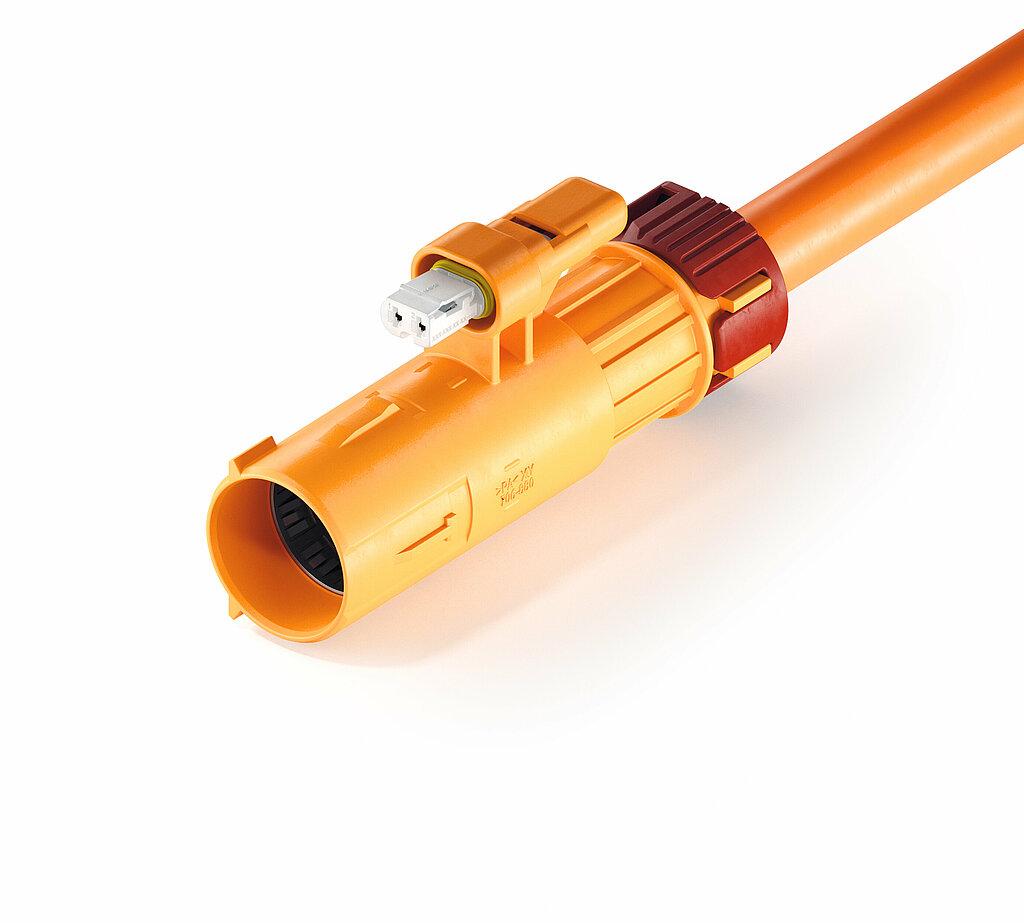

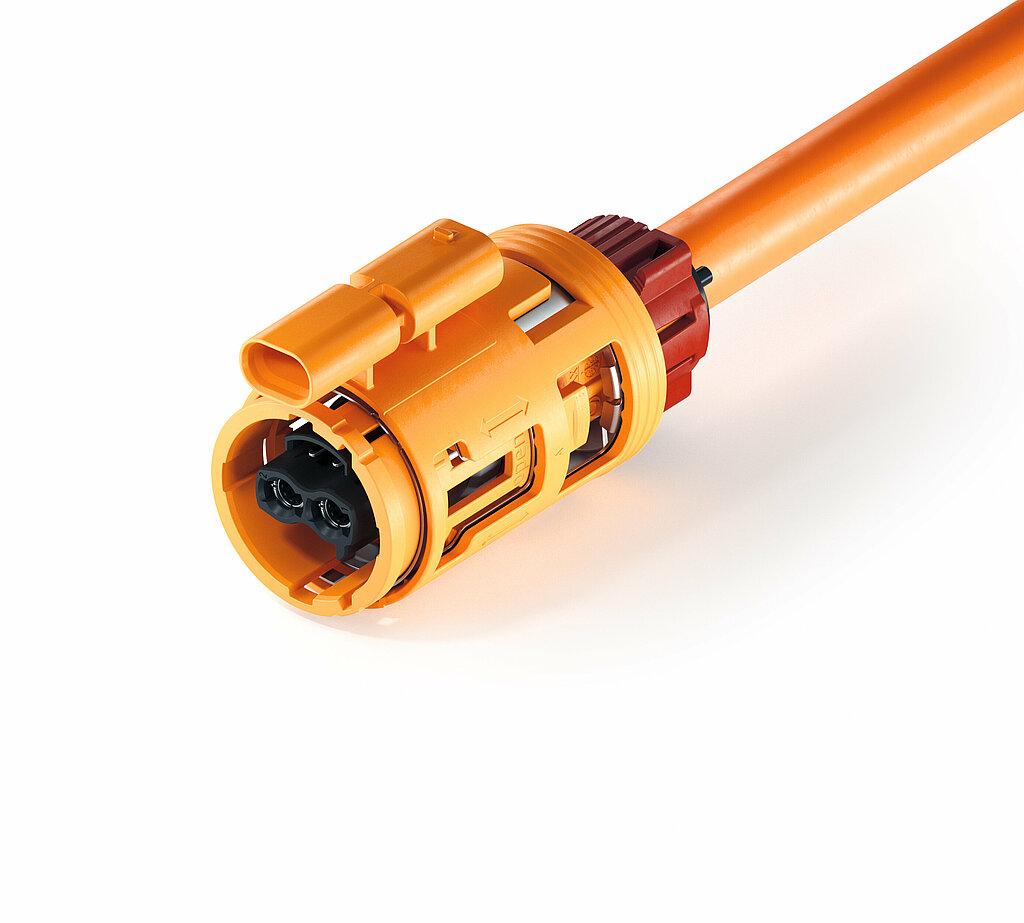

HPS In-Line Connector
The shielded and sealed HIRSCHMANN AUTOMOTIVE PowerStar In-Line Connector offers an optimal separating point. Its compact design enables top installation conditions.
Optionally, the connection system is also available with interlock. The product series complies with all global standards and norms of the automotive industry.
Global Product Manager High Voltage & High Frequency
en
- compliant with automotive test specification LV 214 & USCAR*
- watertight according to IP6K9K
- high current load at high ambient temperatures
- 360° shielded connection
- compact design
- low shielded transition resistance
- simple installation
| PARAMETERS | HPS In-Line Connector (2+2 way) |
| Current Class | current class 1 and 2 connector |
| Applications | inline connection |
| Number of Pins | 2 (high voltage) + 2 (HVIL optional) |
| Operating Condition | U = 1,000 VDC |
Voltage Class | Class B according to ISO 6469-3:2011 60 VDC < U ≤ 1,000 VDC 25 VAC < Ueff ≤ 707 VDC (15-150 Hz) |
| Ambient Condition | -40° C to +140° C |
| Maximum Altitude | 4,000 m |
| Maximum Current Load | 59A at 80° C (6.00 mm2), see deratings product specification |
| IP-Degree of Protection | IPXXB (unmated), IPXXD (mated) |
Watertightness | IP6K9K, IPX8 |
| EMC Performance (6.00 mm2) | until 30 MHz < 5 mΩ/m > 75 dB (10 kHz to 500 MHz) > 75 dB (500 MHz to 1,000 MHz) |
| Shielded Area | 360° circumferential |
| Shield Contact Resistance | < 2 mΩ (total from sheathed cable until aggregate housing) |
Vibration Strength 2 | according to LV214/215 - PG17 (without fixation point) |
| Vibration Strength 3 | according to LV214/215 - PG17 (first fixation point at < 200 mm) |
| Vibration Strength 4 | accoriding to LV214/215 - PG17 (first fixation point at < 50 mm) |
| Mating/Unmating Force | < 65 N |
| Secondary Lock System | activating force < 40 N, no unintentional opening possible |
| Koshiri Safety | yes |
| Polarization/Coding | incorrect insertion force <200 N |
CPA System | operating force < 30 N |
HVIL System | min. 1.0 mm (nominal 2.0 mm), leading |
| CONTACT SYSTEM INFORMATION | |
| Contact System | HCT4 (4.0 mm round terminal), Ag, crimped |
| Material/Surface | Cu-Leg., CuNiSi, Ag |
| Connection | crimped |
| Mating Cycles | max. 50 cycles |
| CUSTOMER-SPECIFIC INFORMATION | |
| Cable Cross Section | 2.5 mm2; 4.0 mm2; 6.0 mm2 as MCC and SCC Solutions |
| Contact Carrier Codings | A, B, C, D, Z |
