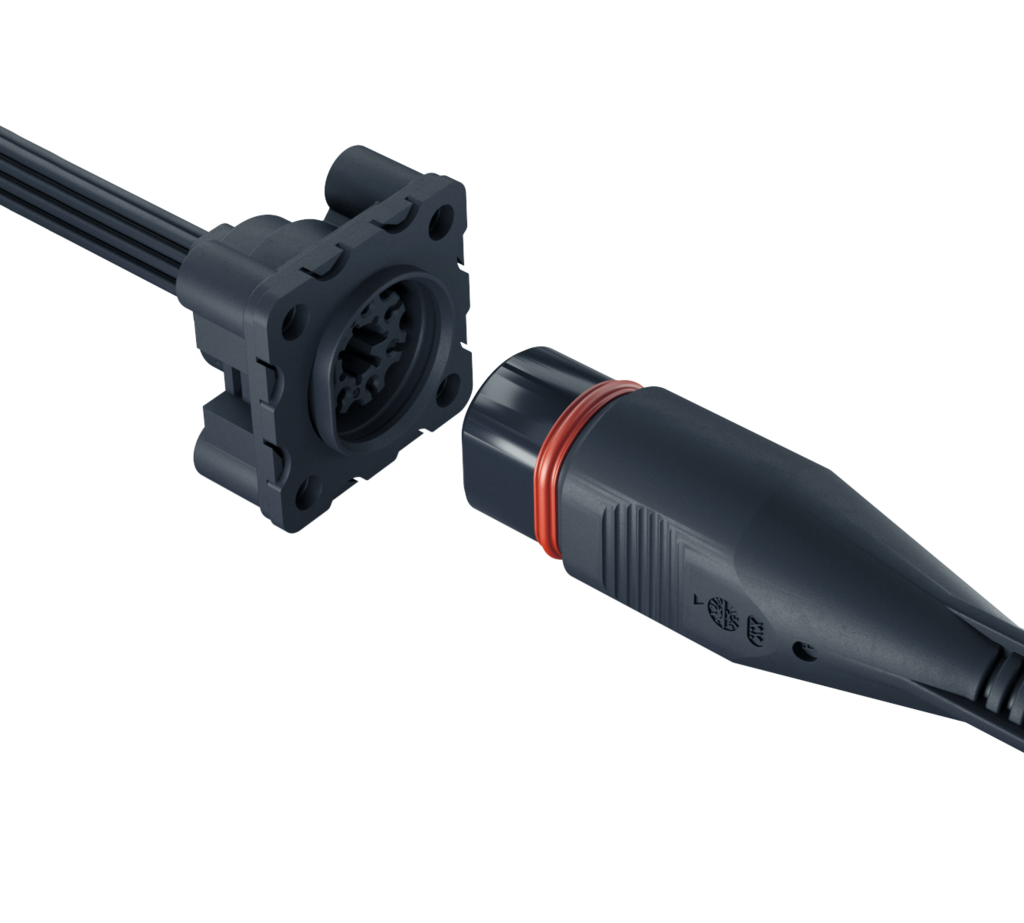

Battery Charging Ports

The interface with up to six pins enables the power and data communication between the charger and the battery. The sealed charger cable set can also be used for charging in wet areas, for example at public charging stations.



The built-in socket is suitable for both frame installation and direct installation into the battery housing. The interface has a high mating cycle capability and can be used for fast chargers up to 14 amperes.

Sven Capelli is your Contact for Individual Questions

Account Manager E-JOYN

+43 5522 307 1325
+43 664 191 665 7
sven.capelli@e-joyn.com
Contact now

Charging connectors for battery or in the frame.

  • Up to 6 way interface for power and data communication between the charger and battery
  • Socket for installation in the frame or directly in the rechargeable battery housing
  • Sealed charger cable set, suitable for outdoor use (wet area)
  • Up to 5.000 connection cycles
  • Touch protected (if 48 V systems)
