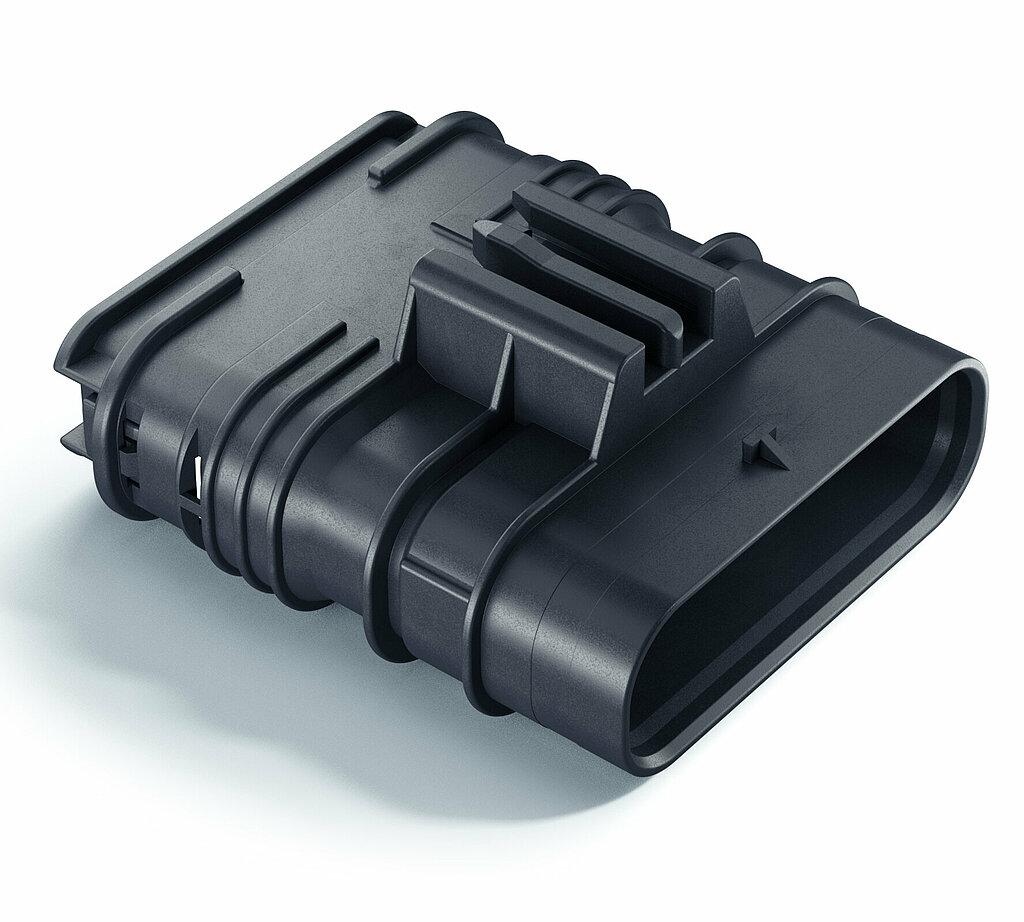

SealStar 1.2 Male



Lightweight designs and efficiency are calling for even smaller components.



The SealStar housings are a robust and top-performing generation of connectors with minimum space requirements. Renowned OEMs and their system manufacturers were involved in the development process.



The innovative design of the housings makes them compatible for the use with a range of different contacts.

Order Sample
Johannes Ulrich is your Contact for Individual Questions

Global Product Manager Low Voltage Connectors

en

+43 (0)5522 307 1096
+43 (0)664 3865860
Johannes.Ulrich@hirschmann-automotive.com
Contact now

The variable housings withstand high thermal and dynamic loads. Furthermore, they have a variety of other positive features:

  • compliant with test specification LV 214 & USCAR*
  • watertight according to IPX9K
  • single-wire sealing and robust radial sealing
  • primary and secondary locking
  • vibration-resistant design
  • connector Positioning Assurance (CPA)*
  • different color and mechanical codings
  • convenient and secure connection with audible feedback of detent function
  • locking device either right or left of the plug collar
  • compact design
  • completely pre-assembled









*certain housings

Technical Product Information on Housing

CACITIES

2 to 16 way

CABLE OUTLET 180°
CONTACTS

MCON: 1.2 mm

MLK: 1.2 mm

PITCH 4.0 mm
TEMPERATURE RANGE -40° C to +150° C
WIRE SIZE RANGE 0.22 to 1.00 mm2



CAVITIES CODING ORDER/PRODUCT NO. STANDARD PRODUCT DOUBLE-ROW LV-214 SEVERITY LEVEL USCAR SEVERITY LEVEL
2 A 872-863-561 yes n/a yes 3 yes T3/V3
2 B 872-863-562 yes n/a yes 3 yes T3/V3
2 A 872-863-566 yes** n/a yes 3 yes T3/V3
3 A 872-658-521 yes n/a yes 3 yes T3/V3
3 B 872-658-522 yes n/a yes 3 yes T3/V3
4 A 872-617-541 yes n/a yes 4 Q1/2022 T2/V3
4 B 872-617-543 yes n/a yes 4 Q1/2022 T2/V3
4 D 872-617-564 yes n/a yes 4 Q1/2022 T2/V3
5 A 806-974-511 yes n/a yes 4 Q1/2022 T2/V3
5 B 806-974-512 yes n/a yes 4 Q1/2022 T2/V3
6 A 806-614-... on request* n/a yes 4 Q1/2022 T2/V3
8 A 872-555-521 yes n/a yes 3 Q1/2022 T2/V3
12 A 807-378-... on request* available yes 3 Q1/2022 T2/V3
16 A 805-588-571 yes available yes 4 Q1/2022 T2/V3



CAVITIES CODING ORDER/PRODUCT NO. CLIP SLOT (Region) SSTANDARD PRODUCT DOUBLE-ROW LV-214 SEVERITY LEVEL USCAR SEVERITY LEVEL
2 A 809-555-521 EMEA yes n/a yes 3 n/a n/a
2 B 809-555-522 EMEA yes n/a yes 3 n/a n/a
2 A 809-555-526 EMEA yes 2) n/a yes 3 n/a n/a
2 A 872-879-... EMEA on request*1) n/a yes 3 n/a n/a
2 B 872-879-... EMEA on request*1) n/a yes 3 n/a n/a
2 C 872-879-... EMEA on request*1) n/a yes 3 n/a n/a
3 A 809-556-521 EMEA yes n/a yes 3 n/a n/a
4 A 809-557-541 EMEA yes n/a yes 3 n/a n/a
8 A 809-560-521 EMEA yes n/a yes 3 n/a n/a
8 B 809-560-522 EMEA yes n/a yes 3 n/a n/a



* on request: OEM specific designs/restricted

1) joyning element turned 180°

2) without clip slot
