In addition to being able to withstand high thermal and dynamic loads, the variable housings boast a number of other positive features:
- compliant with test specification LV 214
- watertight according to IPX9K + IPX7
- patented Hirschmann Automotive solution (two-step plug-in process)
- maximum vibration resistance thanks to a high level of contact normal force (highest verified profile: SG6 up to max. 80 g)
- compatible with existing AK 1.2 interface, suitable for all latches
- temperature range: -40° C to +130° C (up to +150° C for short periods)
- cable cross section: 0.22 to 1 mm2
- insulation Diameter: 1.1 to 2.1 mm
- collar connection geometry identical to SealStar 1.2 mm housings, existing protective caps may be used

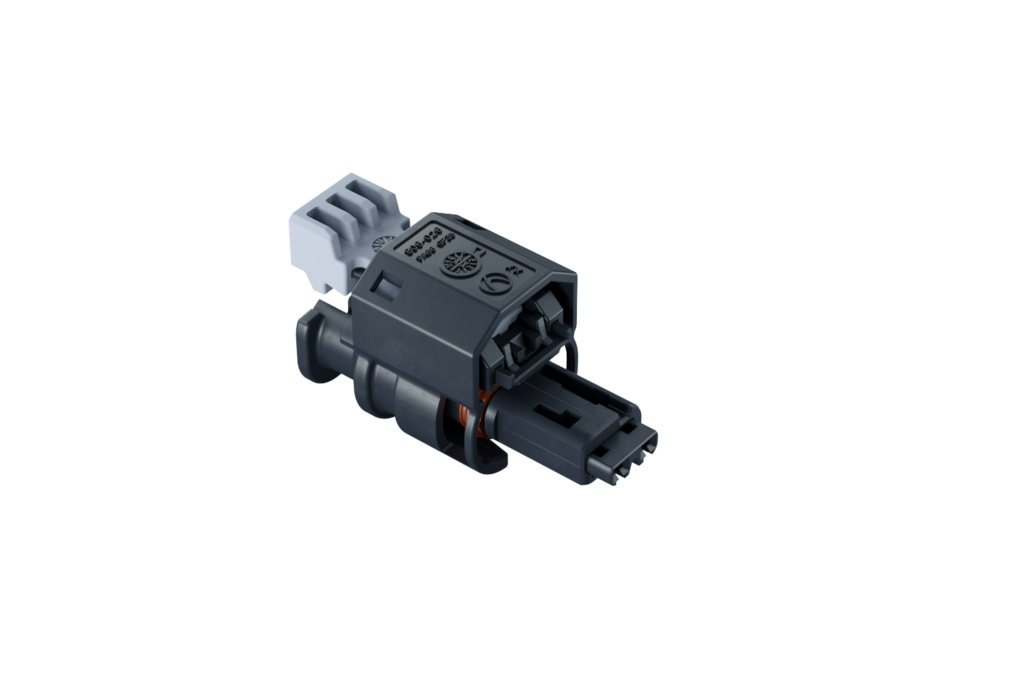

Technical Product Information on Housing
CAVITIES | 2 to 6 way |
CABLE OUTLET | 180° |
CONTACTS | HMK: 1.2 mm |
PITCH | 4.0 mm |
TEMPERATURE RANGE | -40° C to +130° C (up to +150° C for short periods) |
WIRE SIZE RANGE | 0.22 to 1 mm2 |

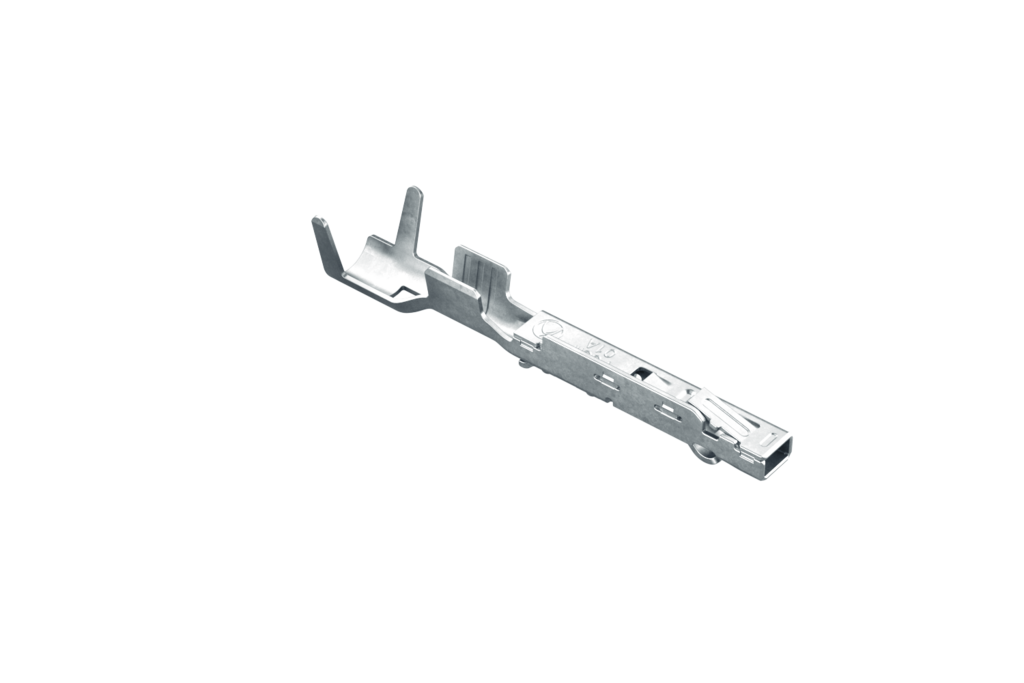

Technical Product Information on Contact
- patented two-step plug-in process
- minimum resistance across contacts
- high level of contact normal force
- maximum vibration resistance

CAVITIES | CPA | CODING | ORDER/PRODUCT NO. | STANDARD PRODUCT | DOUBLE-ROW | LV-214 | SEVERITY LEVEL | USCAR | SEVERITY LEVEL |
2 | available | A | 806-026-541 | yes | n/a | yes | 6 | n/a | n/a |
2 | available | B | 806-026-542 | yes | n/a | yes | 6 | n/a | n/a |
3 | available | A | 806-881-541 | yes | n/a | yes | 6 | n/a | n/a |
3 | available | B | 806-881-... | on request* | n/a | yes | 6 | n/a | n/a |
3 | available | C | 806-881-... | on request* | n/a | yes | 6 | n/a | n/a |
3 | available | D | 806-881-... | on request* | n/a | yes | 6 | n/a | n/a |
4 | available | A | 806-880-541 | yes | n/a | yes | 6 | n/a | n/a |
4 | available | B | 806-880-... | on request* | n/a | yes | 6 | n/a | n/a |
4 | available | C | 806-880-... | on request* | n/a | yes | 6 | n/a | n/a |
5 | available | A | 805-992-541 | yes | n/a | yes | 6 | n/a | n/a |
5 | available | B | 805-992-... | on request* | n/a | yes | 6 | n/a | n/a |
6 | available | A | 806-524-... | on request* | n/a | yes | 6 | n/a | n/a |
*on request: OEM specific designs/restricted
